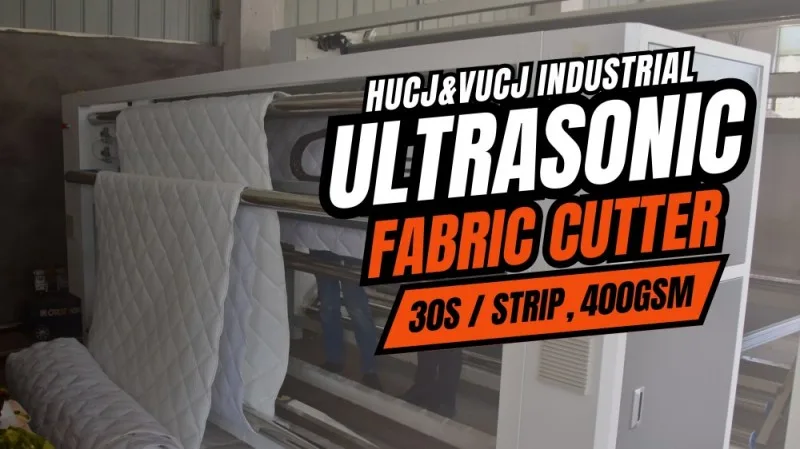

Ultrasonic Cutting & Welding Machine
The HUCJ/VUCJ is a high-performance ultrasonic cutting and welding system engineered specifically for precision fabric and textile processing in mattress and home textile manufacturing. Designed for continuous industrial production, this machine simultaneously cuts and seals fabric edges in a single pass — eliminating secondary finishing steps and delivering clean, fray-free results at speeds up to 3000 mm/min or 30 seconds per strip.
Customer Service
Share your contact information – our engineers respond 24/7.
For Mattress Panel Processing
Synthetic and blended fabrics, non-woven materials, lace, ribbons, elastic bands, and technical textiles up to 400 g/m², including all material types used in apparel, medical textiles, home furnishings, and industrial fabric manufacturing operations.

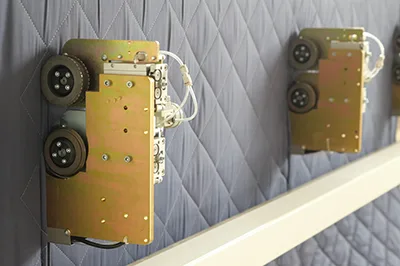

ULTRASONIC STEEL TOOL HEAD
High-conductivity, wear-resistant ultrasonic steel tool head delivers consistent energy at the cut-weld point, ensuring stable performance and fast, easy replacement during high-volume mattress and home textile production runs.
SERVO-CONTROLLED ROLLER DRIVE
Precision servo motor controls roller speed and position with high accuracy, ensuring consistent and repeatable cutting performance across the full effective width for uniform mattress panels and home textile components.
SIMULTANEOUS CUT & WELD
Pattern roller and cutter wheel operate in synchronized linkage compensation mode, cutting and sealing fabric edges in a single pass for mattress ticking, bedcovers, and home textile fabrics without additional steps.

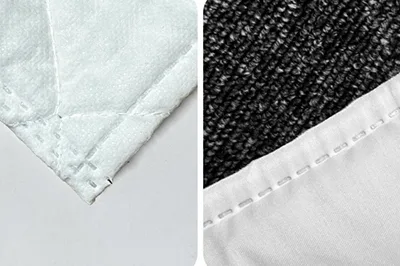

Clean, Sealed Fabric Edges Ready for Mattress and Bedding Assembly
Industrial Ultrasonic Fabric Cutting and Welding Machine for Mattress and Home Textile Production
Simultaneously cut and sealed fabric edges feed directly into mattress assembly and home textile production lines, maximizing throughput, reducing material waste, and ensuring consistent finished-quality results across every mattress panel, bedcover, quilt, and pillow cover component.
SPECIFICATION
HUCJ | VUCJ | Effective Width | 2400 mm / 2800 mm | Effective Width | 2400 mm / 2800 mm |
|---|---|---|---|
Cutting Thickness | 400 g/m² | Cutting Thickness | 400 g/m² |
Capacity | 30 s/strip | Cutting Speed | 3000 mm/min (material dependent) |
Power | 2 kW | Power | 2.5 kW |
Voltage | 3-Phase 380 V | Voltage | 1-Phase 220 V |
Machine Size (L×W×H) | 3000 mm × 3400 mm × 1700 mm | Machine Size (L×W×H) | 900 mm × 3400 mm × 1700 mm |
Machine Weight | 900 kg | Machine Weight | 700 kg |
FAQs
What types of fabrics can the HUCJ/VUCJ ultrasonic cutting and welding machine process?
The machine is designed to process a wide range of synthetic and blended fabrics, including mattress ticking, quilted fabrics, border fabrics, non-woven materials, bedcovers, pillow covers, and duvet covers — handling material weights up to 400 g/m².
Does the machine cut and weld at the same time?
Yes. The pattern roller and cutter wheel operate in synchronized linkage compensation mode, completing fabric cutting and edge sealing in a single pass — eliminating the need for secondary finishing processes.
How long can the machine operate continuously?
The machine is equipped with a high-power radiator cooling system that maintains stable operating temperatures during extended production runs, making it suitable for long-hours, high-volume continuous industrial operation.
What Is The Warranty Period For Your Ultrasonic Cutting Machine?
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
What Is The Lead Time For Delivery After Placing An Order?
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Can I produce high-density memory foam with this system?
Yes. The combination of the 30kW high-performance motor and the 3000 RPM mixing head provides the necessary torque and mixing intensity to handle the higher viscosities associated with luxury memory foam and high-resilience (HR) grades.
