Horizontal PU Foam Slitting Machine
The CNC-HQ Horizontal PU Foam Slitting Machine is a high-speed slicing system designed for precise foam sheet production in mattress manufacturing. Built for automation and stable daily operation, this machine converts large PU foam blocks into uniform sheets with ±1mm accuracy and automatically stacks them for the next mattress processing stage.
Customer Service
Share your contact information – our engineers respond 24/7.
Mattress Foam Sheet Production
PU foam, viscoelastic (memory foam), latex foam, and rebonded foam used in mattress and furniture manufacturing operations.
CIRCULATING KNIFE SYSTEM
Round-trip bidirectional circulating blade system ensures continuous slicing efficiency. Integrated automatic sharpening maintains blade sharpness during operation for stable cutting performance and extended service life.
CNC CONTROL SYSTEM
Computerized numerical control system with automatic path generation enables optimized cutting patterns, precise positioning, and stable thickness control for consistent foam sheet quality.
AUTOMATIC STACKING & TRANSFER
Foam sheets are automatically stacked after slicing and transferred through a built-in lifting platform, minimizing manual handling while preparing materials for vertical cutting or additional trimming processes.
SPECIFICATION
Accuracy | ±1mm | Minimal Cutting Size | 7mm |

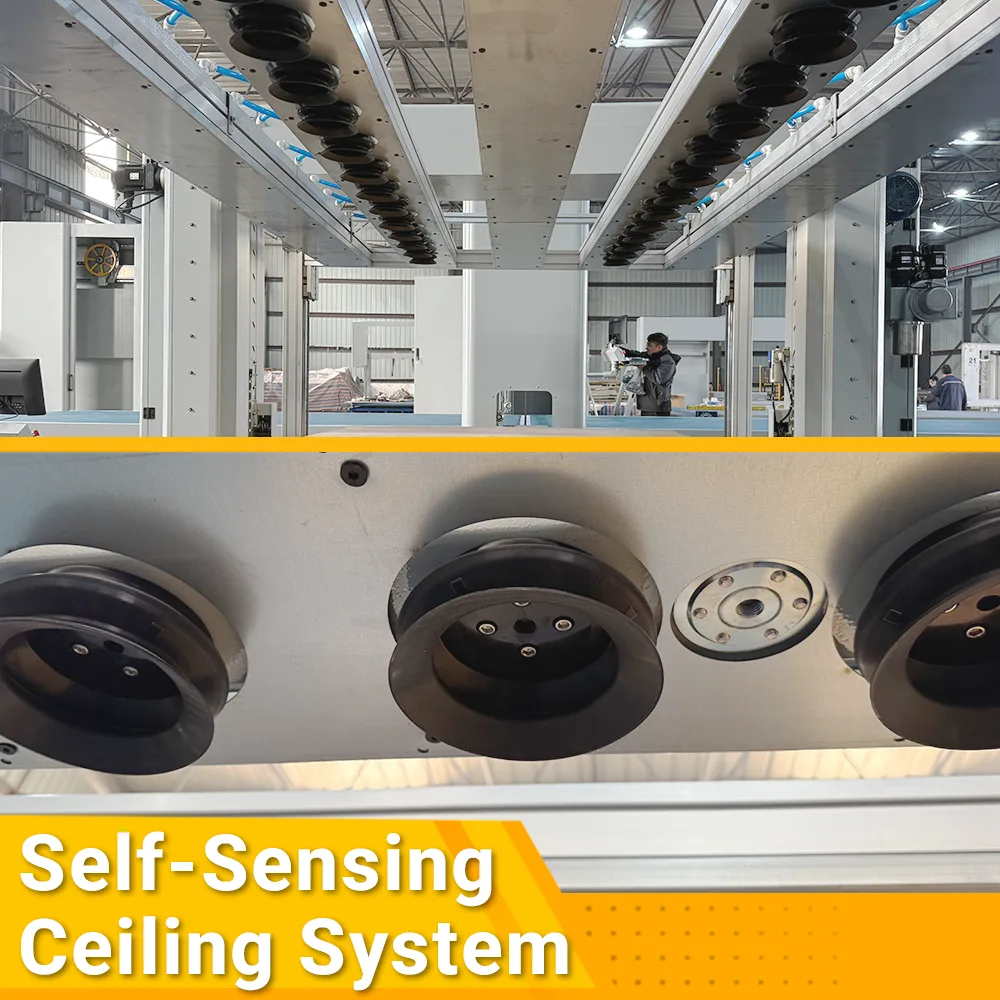

Working Speed | 0-100m/min(subject to density) | Slef-sensing Ceiling Light | Installed |
Blade Size | 11600*4.2*0.6mm |
FAQs
What foam types can this machine process?
It processes PU foam, memory foam, latex foam, and rebonded foam used in mattress production.
What is the maximum foam block height?
The machine supports foam blocks up to 1200mm in height.

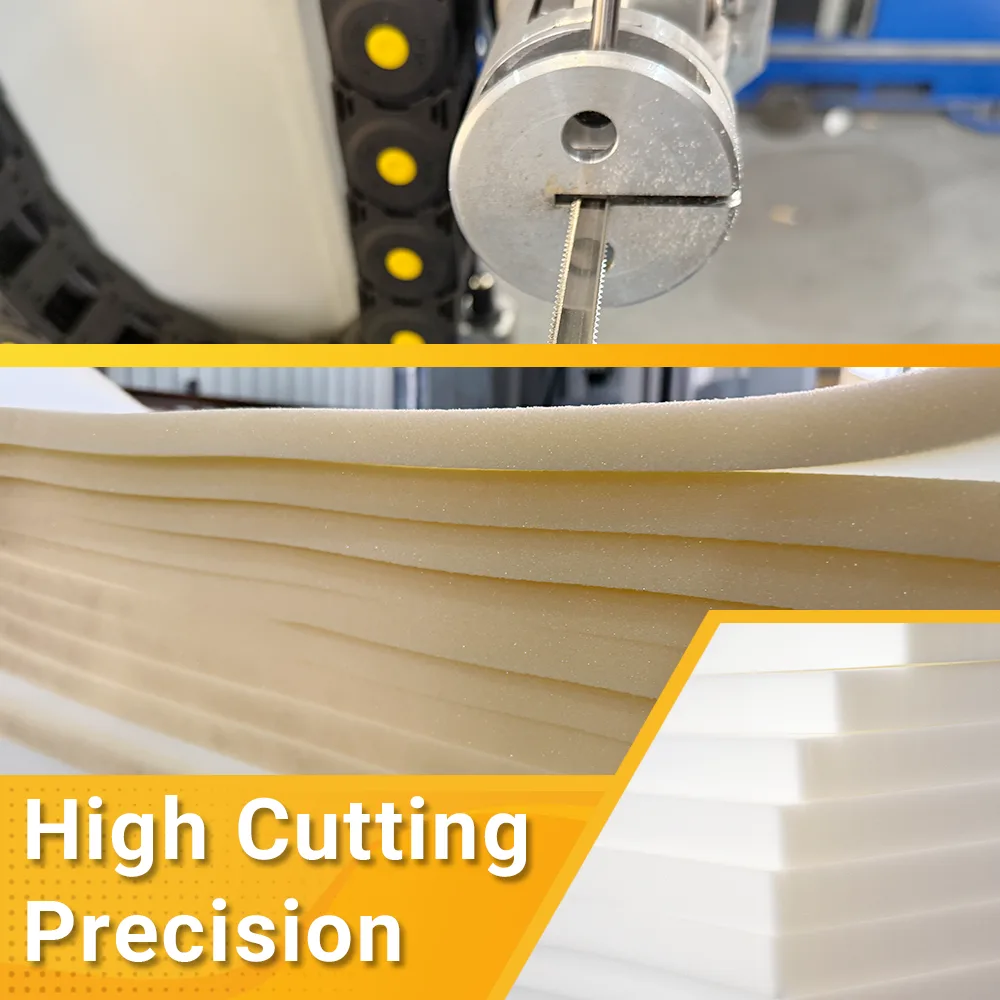

How accurate is the cutting thickness?
The cutting accuracy is maintained within ±1mm.
What Is The Warranty Period For Your Foam Slitting Machine?
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
What Is The Lead Time For Delivery After Placing An Order?
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Can I produce high-density memory foam with this system?
Yes. The combination of the 30kW high-performance motor and the 3000 RPM mixing head provides the necessary torque and mixing intensity to handle the higher viscosities associated with luxury memory foam and high-resilience (HR) grades.
