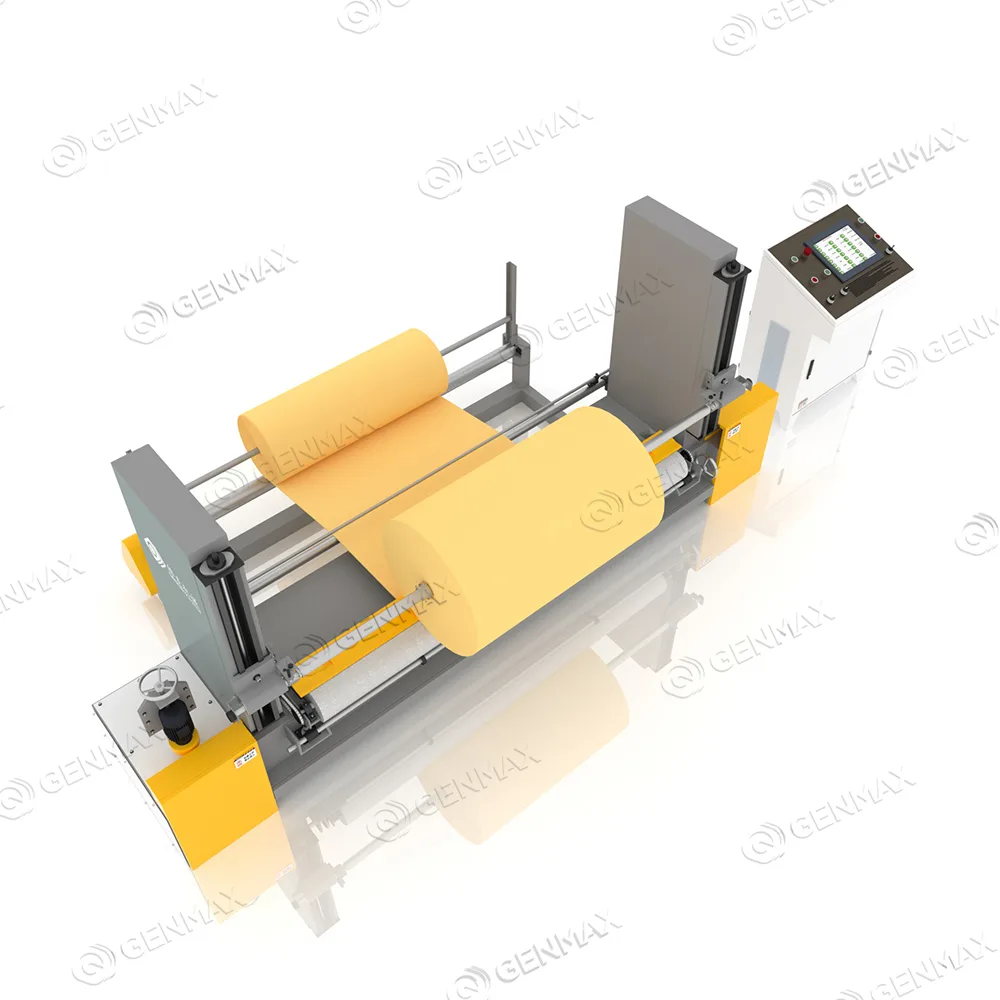

Foam Peeling Machine

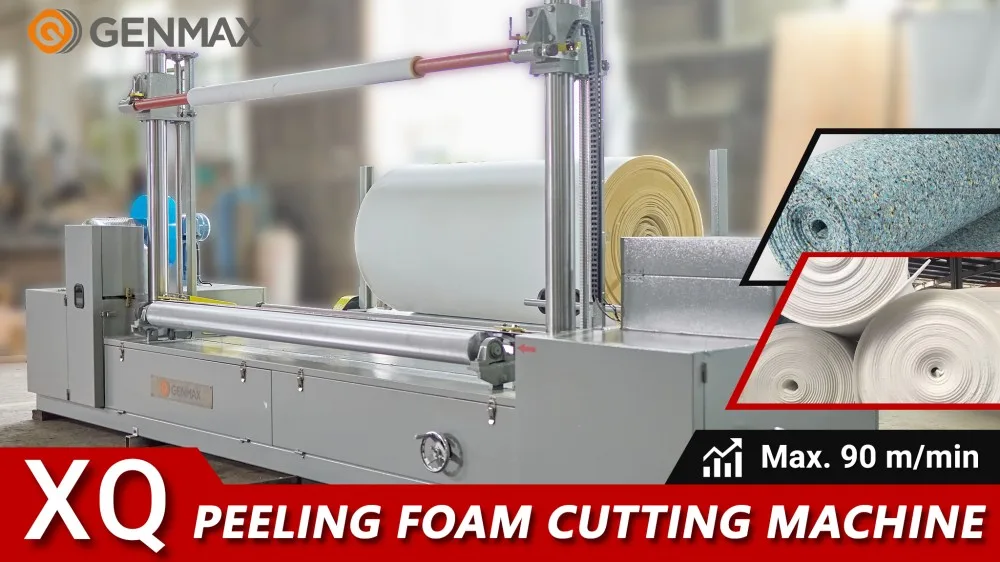

The XQ-2150/150/200 is a high-performance continuous foam slicing system engineered specifically for precision conversion of cylindrical foam blocks into sheets of specified thickness in bedding and textile manufacturing. Designed for continuous industrial production, this machine delivers consistent sheet quality at cutting speeds up to 90 m/min — eliminating manual thickness adjustment and delivering uniform, precision-cut foam sheets ready for immediate downstream processing.
Customer Service
Share your contact information – our engineers respond 24/7.
For Foam Sheet Production

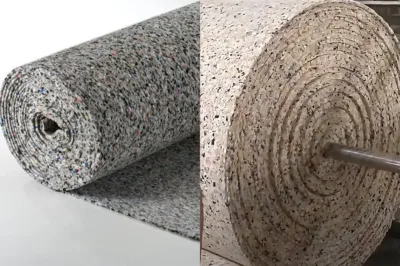

Precision foam sheets in various thicknesses for bedding, mattress padding, textiles, footwear cushioning, and protective packaging applications. All foam sheet types used in apparel, medical textiles, home furnishings, and industrial foam manufacturing operations up to 400 g/m².
SERVO-CONTROLLED
Kinco servo motor controls cutting thickness with high accuracy, ensuring consistent dimensional performance and uniform foam sheet quality across continuous production runs.
CONTINUOUS AUTOMATIC WINDING
Integrated automatic winding equipment with speed control winds up foam sheets immediately after cutting, feeding directly into downstream production without additional manual handling steps.
DUAL FEED & DUST MANAGEMENT
Pressure roller ensures consistent material feed while integrated dust collection and blade sharpening device maintain optimal cutting performance throughout high-volume foam production runs.
Uniform Foam Sheets Ready for Mattress and Textile Assembly
Precision Foam Sheet Conversion for Bedding and Industrial Applications
Precision-cut and automatically wound foam sheets feed directly into mattress assembly and textile production lines, maximizing throughput, reducing material waste, and ensuring consistent finished-quality results across every bedding component, cushioning layer, and protective packaging application.
SPECIFICATION
Model | XQ-2150 | XQ-150 | XQ-200 | Foam Type | Foam | Rebond Foam | Rebond Foam |
|---|---|---|---|
Max. Cutting Foam Size | φ2000 × W2150 mm | φ2000 × W1900 mm | φ2000 × W2200 mm |
Cutting Thickness | 1–30 mm | 1–30 mm | 1–30 mm |
Cutting Density | up to 40 kg/m³ | up to 100 kg/m³ | up to 100 kg/m³ |
Cutting Speed(dependent on foam density) | max. 90 m/min | max. 30 m/min | max. 30 m/min |
Cutting Accuracy | ±0.1 mm | ±0.1 mm | ±0.1 mm |
Thickness Control | PLC | PLC | PLC |
Blade Frame Lead Screw | Ball screw | Ball screw | Ball screw |
Automatic Collection Winder | √ | √ | √ |
Winder Speed Control | √ | √ | √ |
Dust Collection Device | √ | √ | √ |
Blade Length | 8870 mm | 8060 mm | 8470 mm |
Voltage (customizable) | AC 3-phase 380 V, 50 Hz | AC 3-phase 380 V, 50 Hz | AC 3-phase 380 V, 50 Hz |
Power | 4.67 kW | 6.8 kW | 12.19 kW |
Net Weight | 1470 kg | 1530 kg | 1560 kg |
Machine Dimensions | L4600 × W1700 × H1850 mm | L4000 × W1500 × H1850 mm | L4150 × W1500 × H1850 mm |
FAQs
Can all three models process the same foam types?

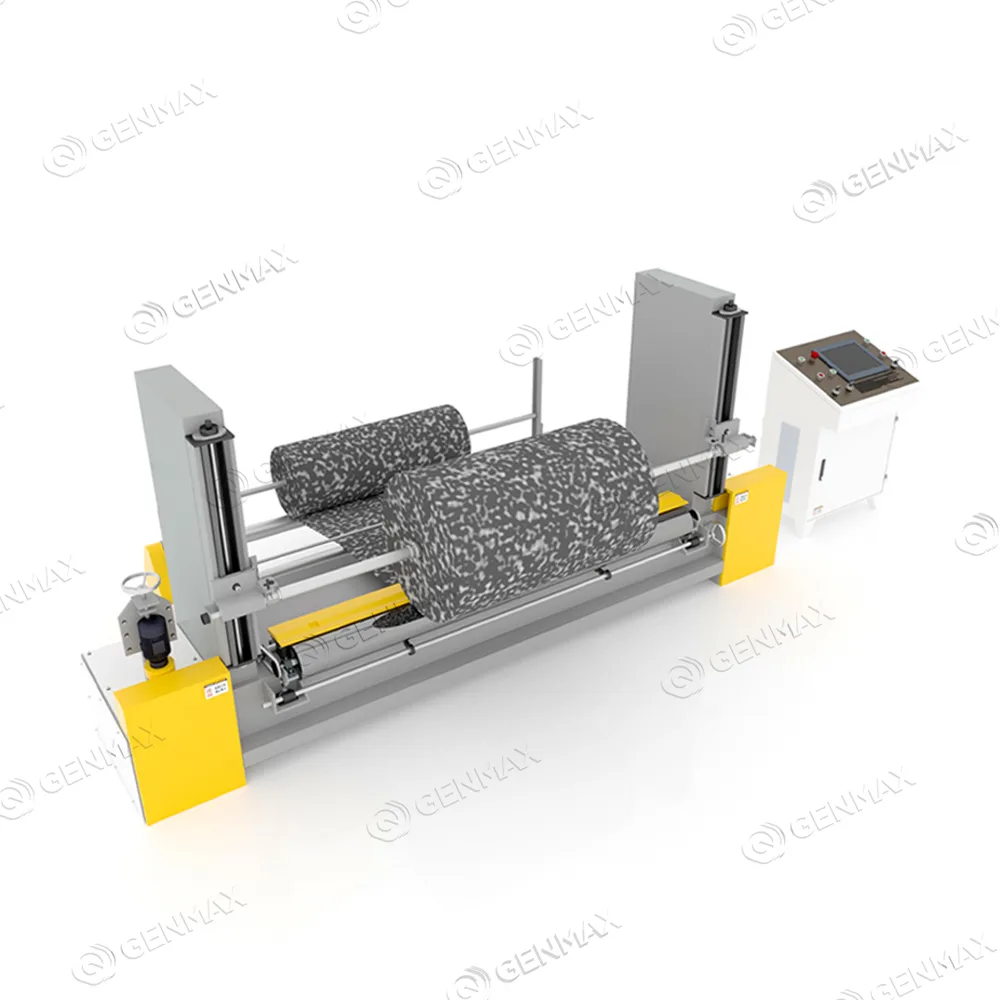

The XQ-2150 processes standard foam up to 40 kg/m³. The XQ-150 and XQ-200 are specifically designed for rebond foam and can handle higher densities up to 100 kg/m³, making them better suited for denser foam materials.
What maintenance does the blade require?
The machine includes an integrated blade sharpening device that maintains optimal cutting performance during operation. Regular sharpening extends blade life and reduces downtime during high-volume production.
Can the machine handle heavy foam blocks?
Yes. An optional lifting platform is available for processing heavy foam blocks and is recommended when manual lifting is impractical or unsafe.
What Is The Warranty Period For Your Foam Peeling Machine?
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
What Is The Lead Time For Delivery After Placing An Order?
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Can I produce high-density memory foam with this system?
Yes. The combination of the 30kW high-performance motor and the 3000 RPM mixing head provides the necessary torque and mixing intensity to handle the higher viscosities associated with luxury memory foam and high-resilience (HR) grades.
