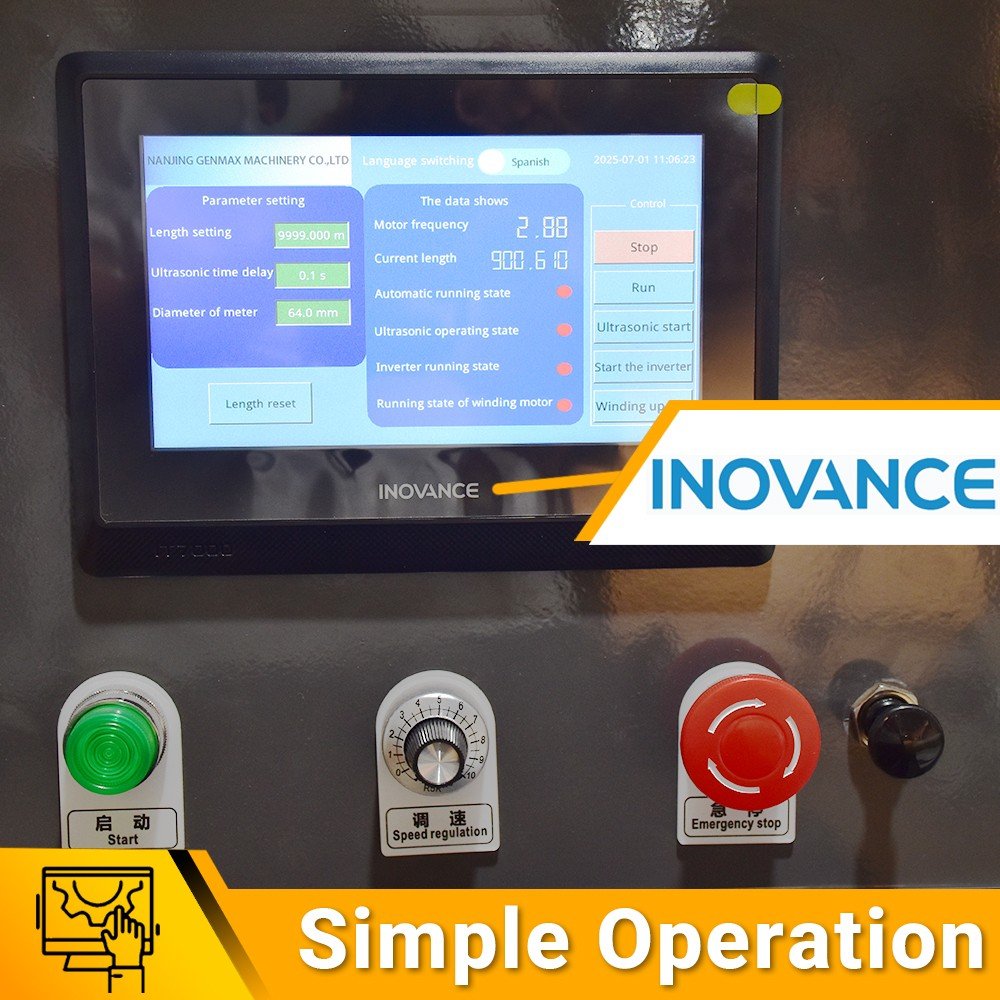

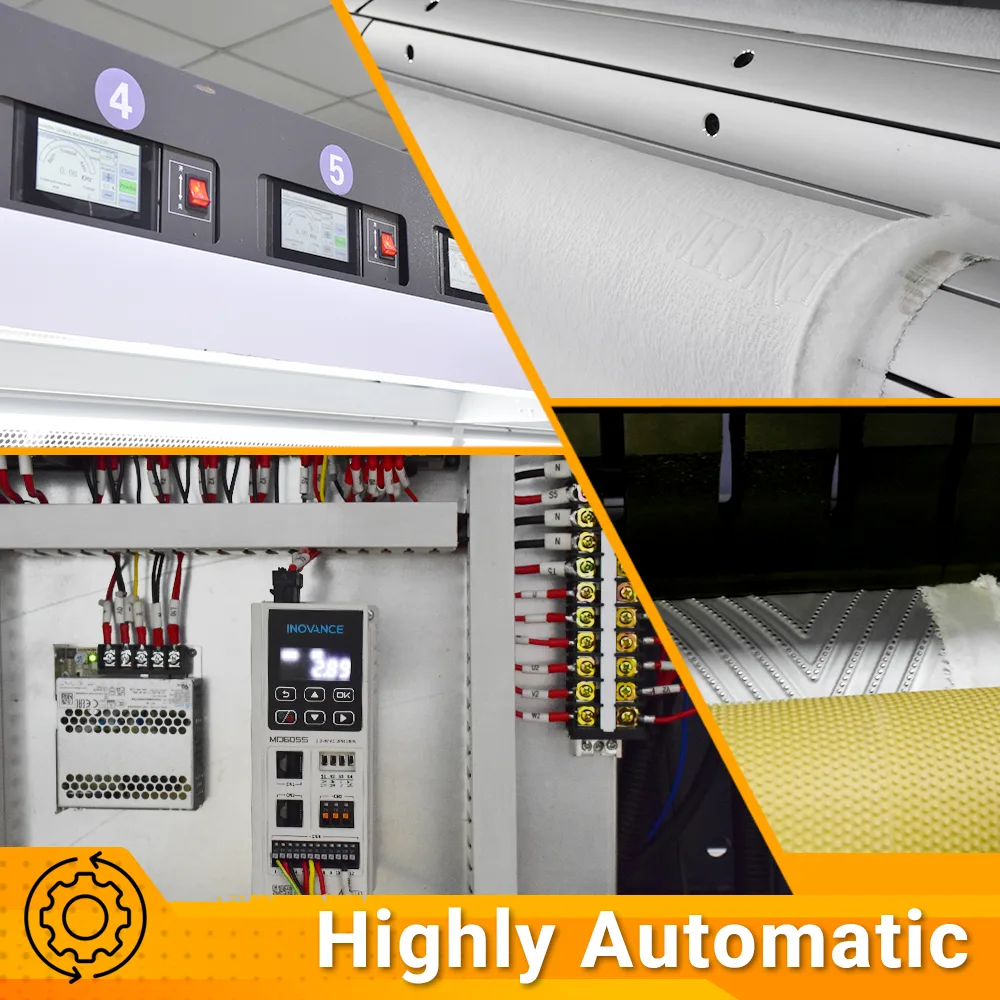

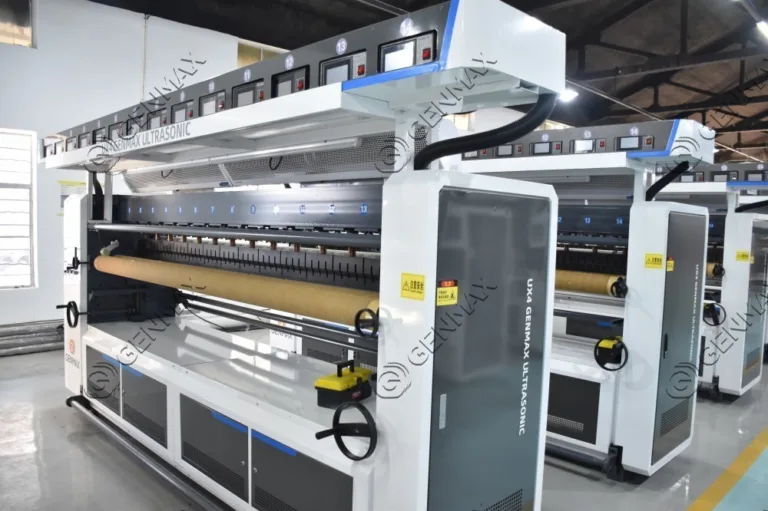

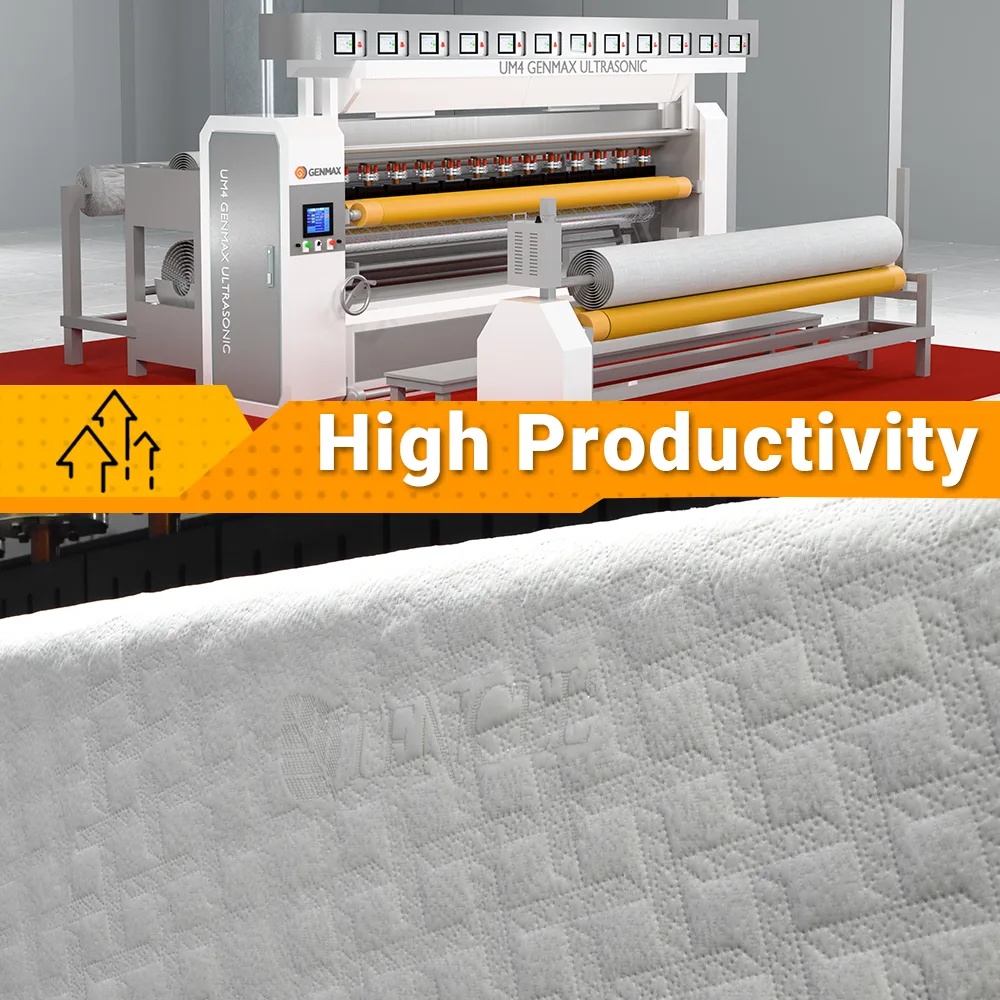

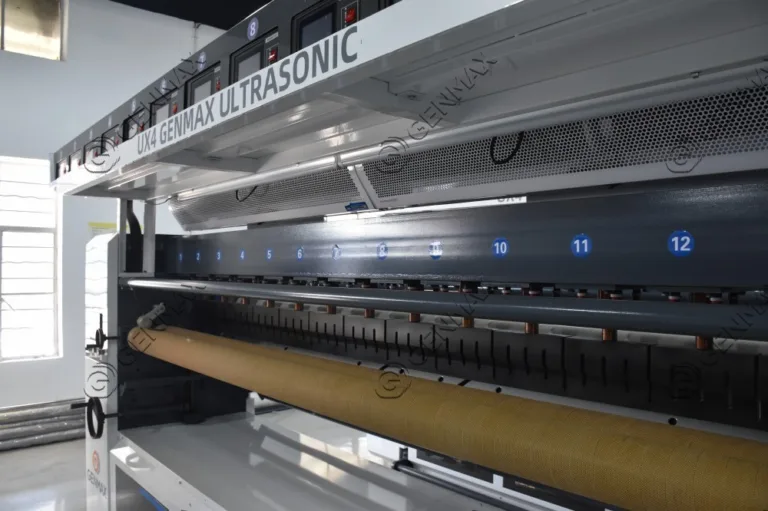

GENMAX UM4 Ultrasonic Quilting Embossing Machine bonds fabrics without needles or thread. It uses ultrasonic technology instead. UM4 features a simple touch screen for easy operation. It handles materials up to 1000 GSM thickness. Production speed is 3 to 5 times faster than traditional quilting methods. The system runs at 300-1200 meters per hour. It works with synthetic fabrics, non-woven materials, polyester, cotton, and spray-bonded textiles. You can create crystal-clear patterns with custom designs.

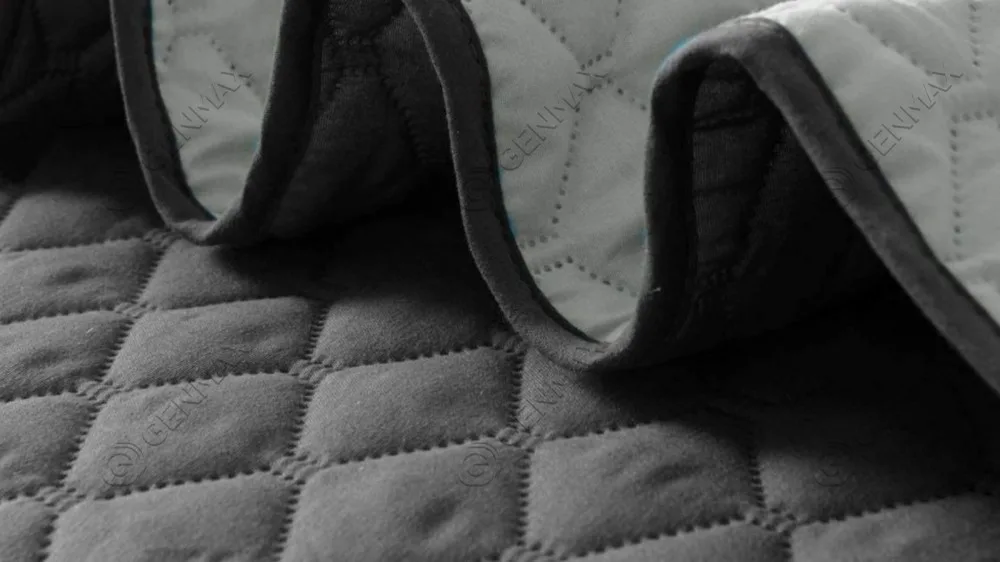

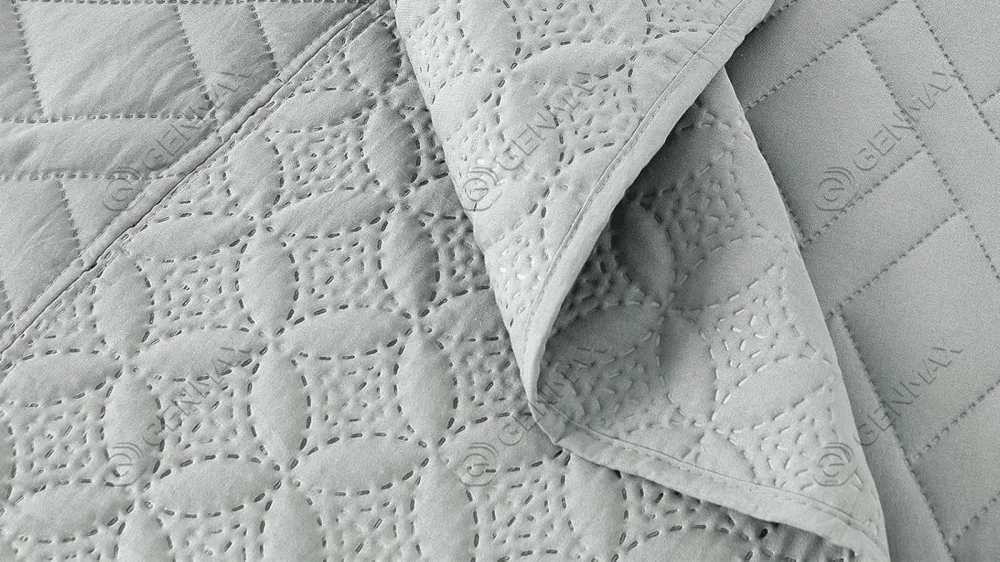

UM4 Ultrasonic Quilting Machine produces firmly bonded, tear-resistant products. Finished items are ready for immediate use. It’s perfect for home textiles, mattresses, bedding, apparel, electric blankets, and automotive interiors. Each purchase includes complete installation and training. GENMAX experienced engineers provide full support. UM4 operates reliably worldwide.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Working Speed | 50-1200m/h | Max Thickness | 60mm |
Roller Width | 1850/2300/2600/2907/3060mm | Horn | 19 sets(depends on width) |
Slitting Knife | 12 pieces(depends on width) | Diameter of Roller | 130-190mm(Customized) |

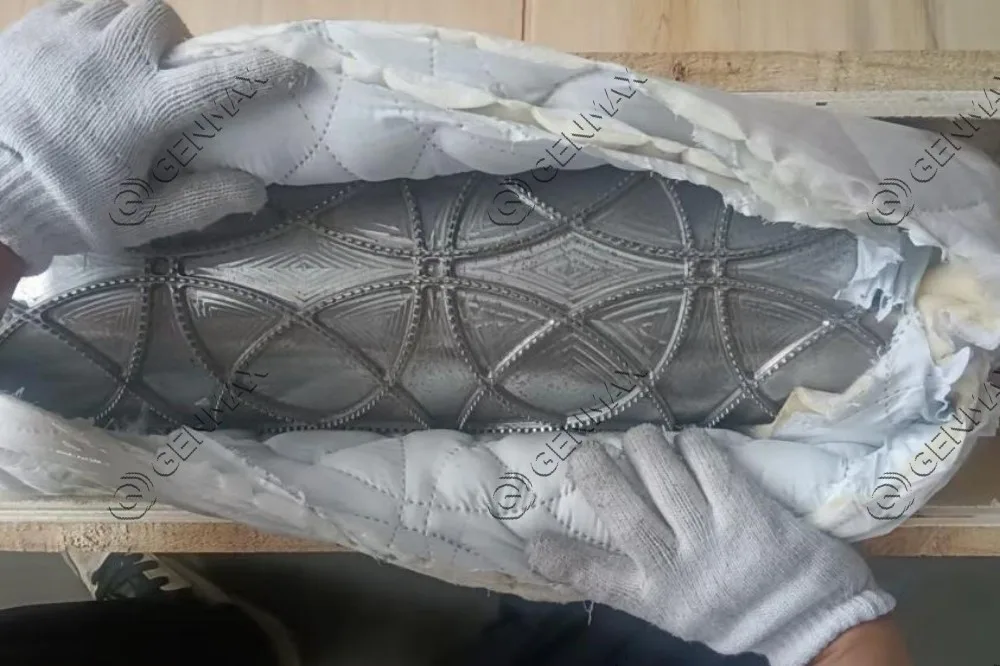

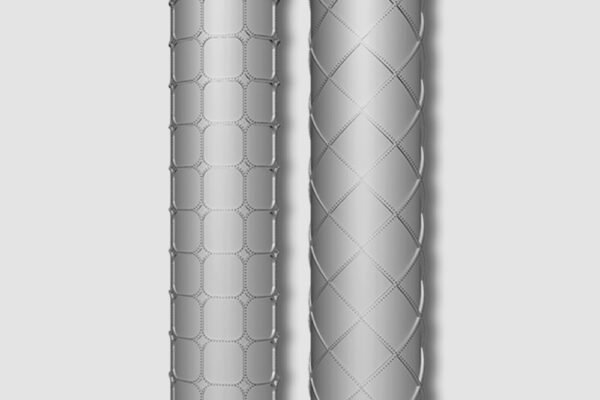

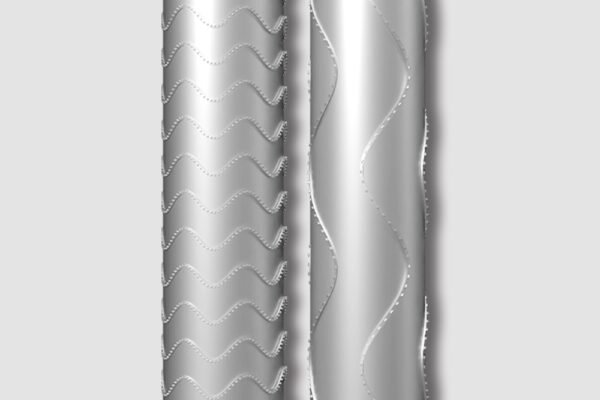

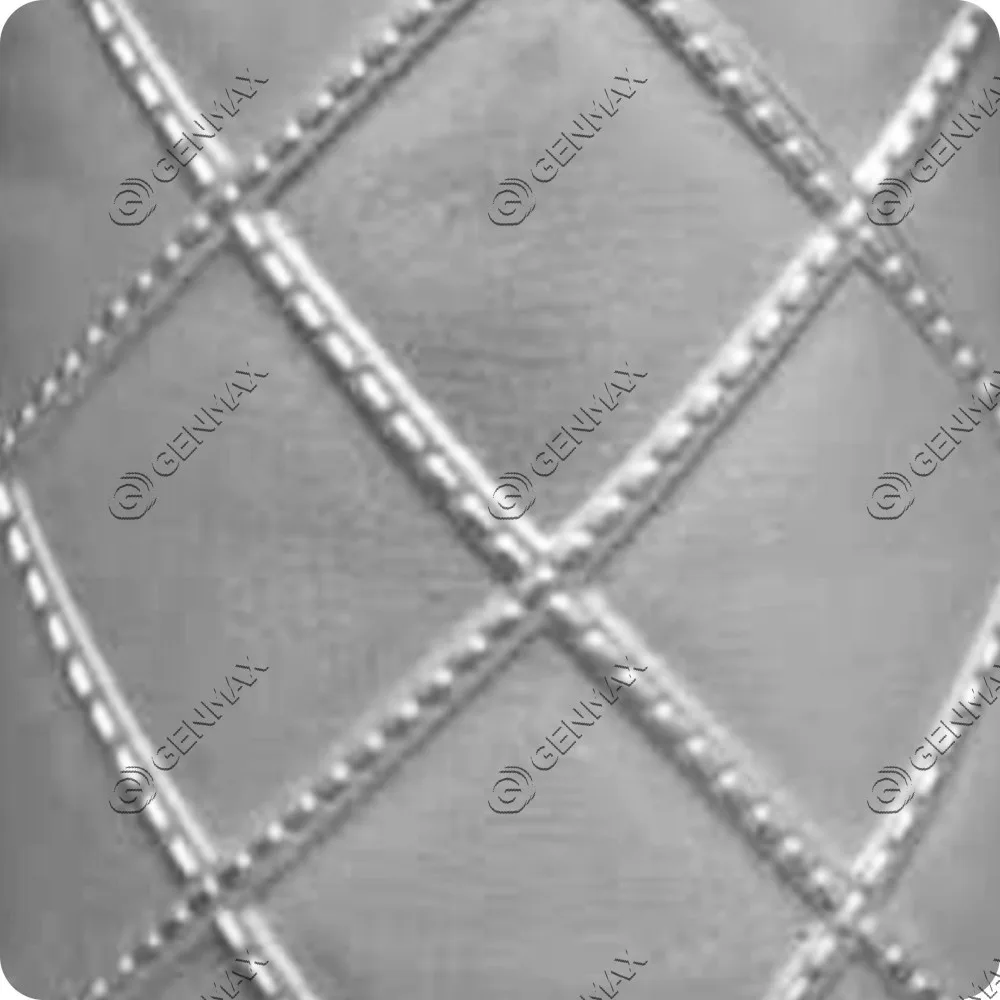

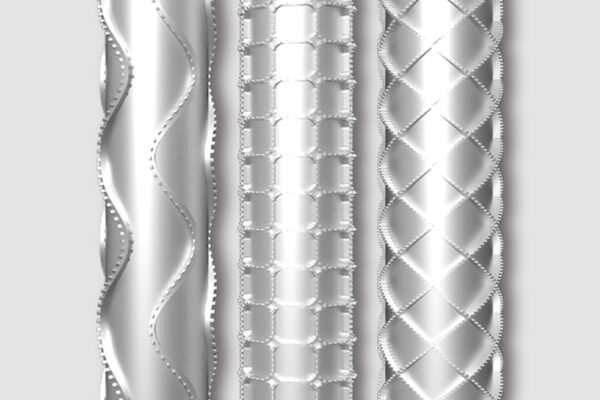

Roller Pattern | Can Be Customized | Roller Type | Engraving 4-7mm |
Working Frequency | 18khz | Weight | 2000kg |
Motor Power | 9KW(instantaneous current 18kw) | Power | 380V,3P,50HZ |
Suitable Fabric | non-woven, artificial leather, knitted fabric, chemical fibre fabric, etc.(sponges) | ||
Bedspreads, bed sheets, pillowcases, and quilt sets manufacturing
Curtains, upholstery, and sofa covers quilting applications
Multi-layer fabric composite processing and mattress protectors
Garment quilting and fabric bonding applications

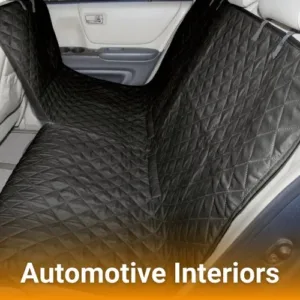

Seat covers and interior fabric bonding solutions
Waterproof mattress covers and protective bedding items
A: The maximum production speed is up to 20 meters per minute, allowing for high-volume production in a shorter timeframe.
A: No, the UM4 maintains crystal-clear patterns and perfect embossing detail even at high speeds. The ultrasonic bonding creates professionally finished, firmly bonded, tear-resistant construction.
A: The UM4 is compatible with non-woven fabrics, spunbond cotton, needle-punched cotton with chemical fiber, and artificial leather. These materials are ideal for ultrasonic bonding applications.
A: The maximum quilting thickness is 1000 GSM (grams per square meter), allowing you to work with a wide range of material weights and thicknesses.

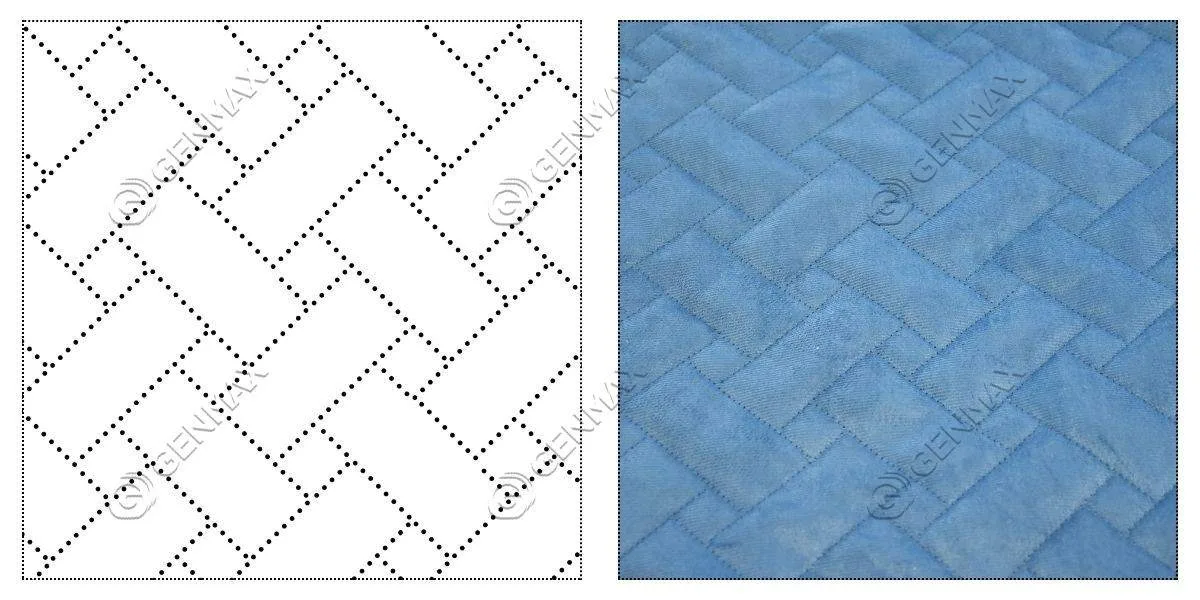

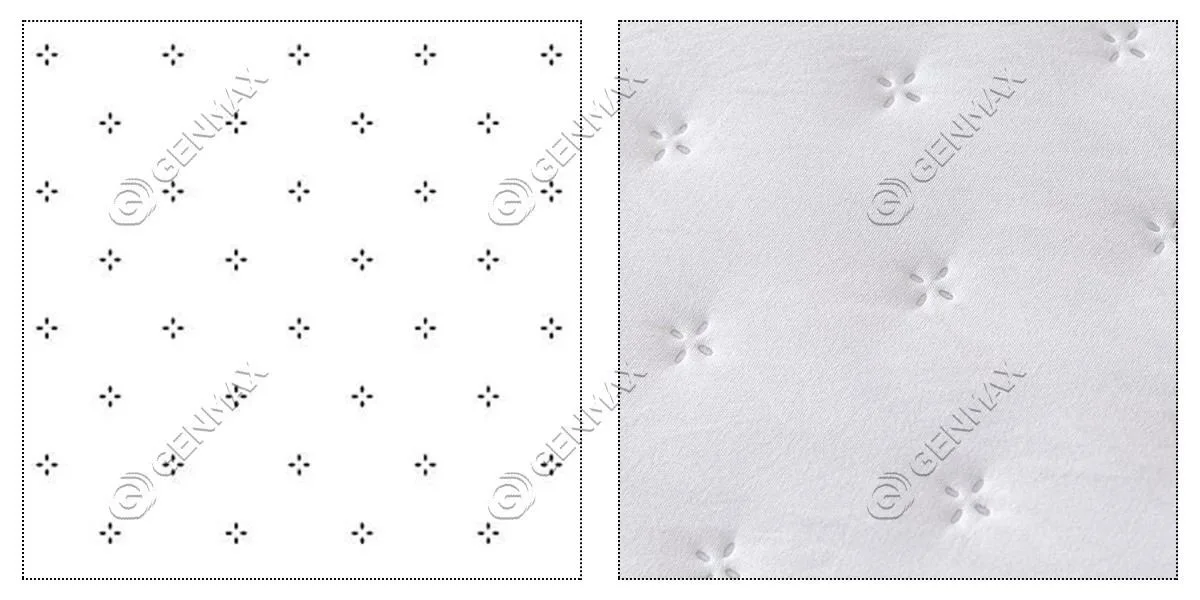

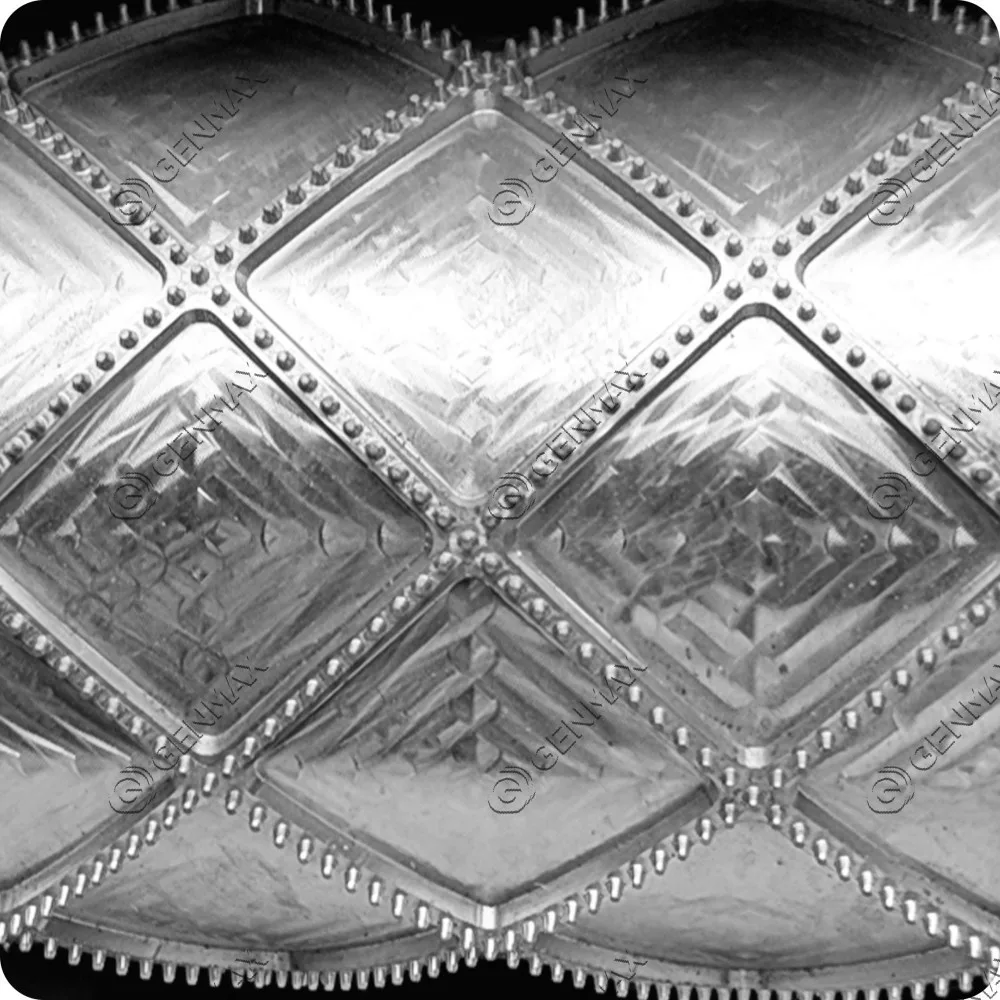

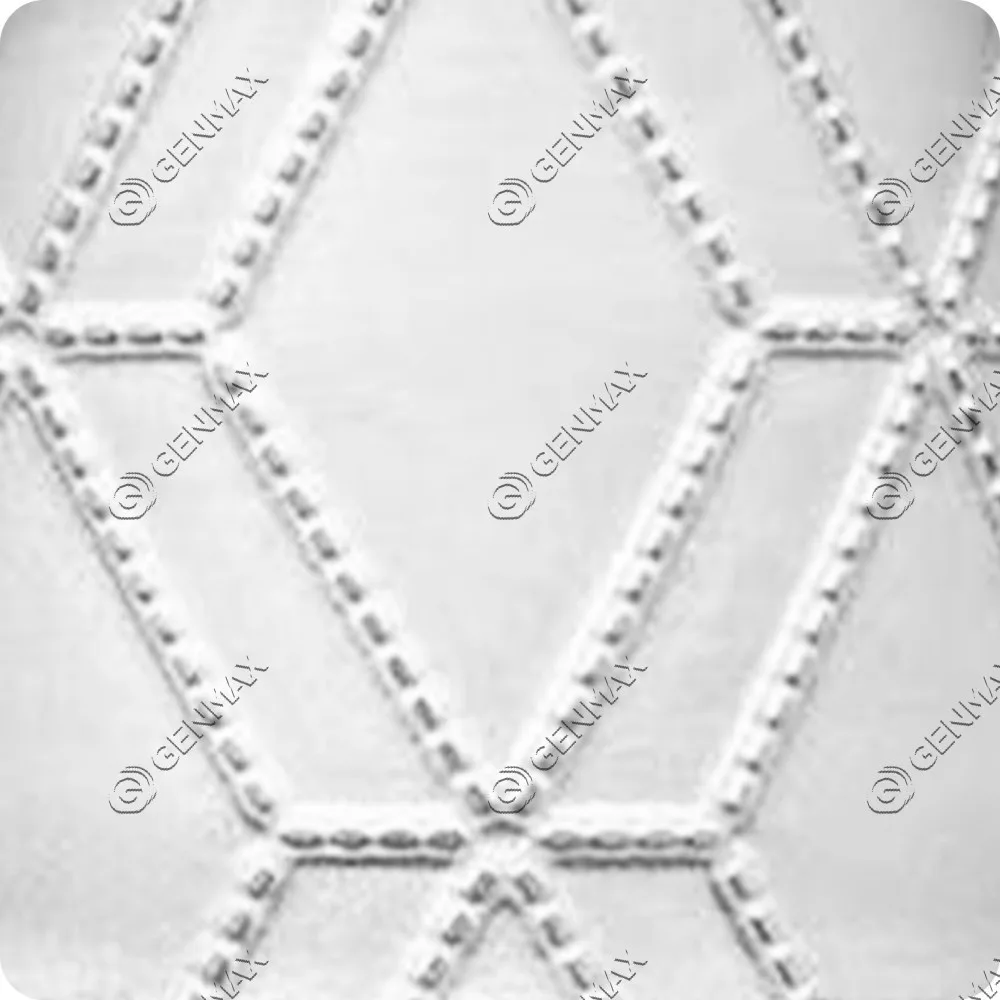

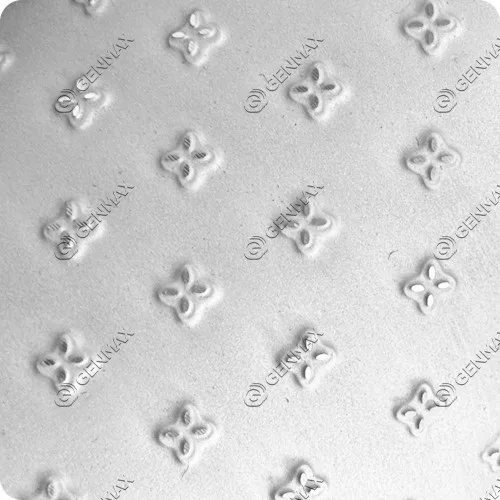

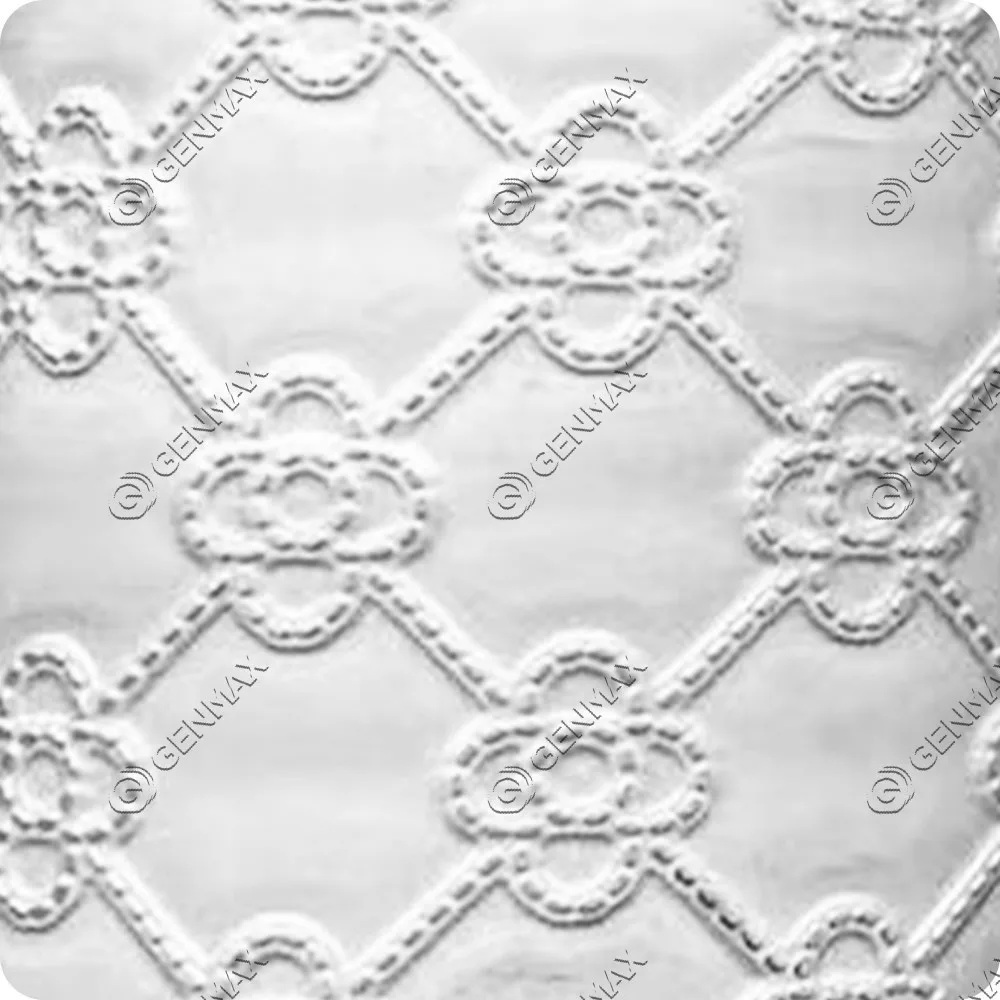

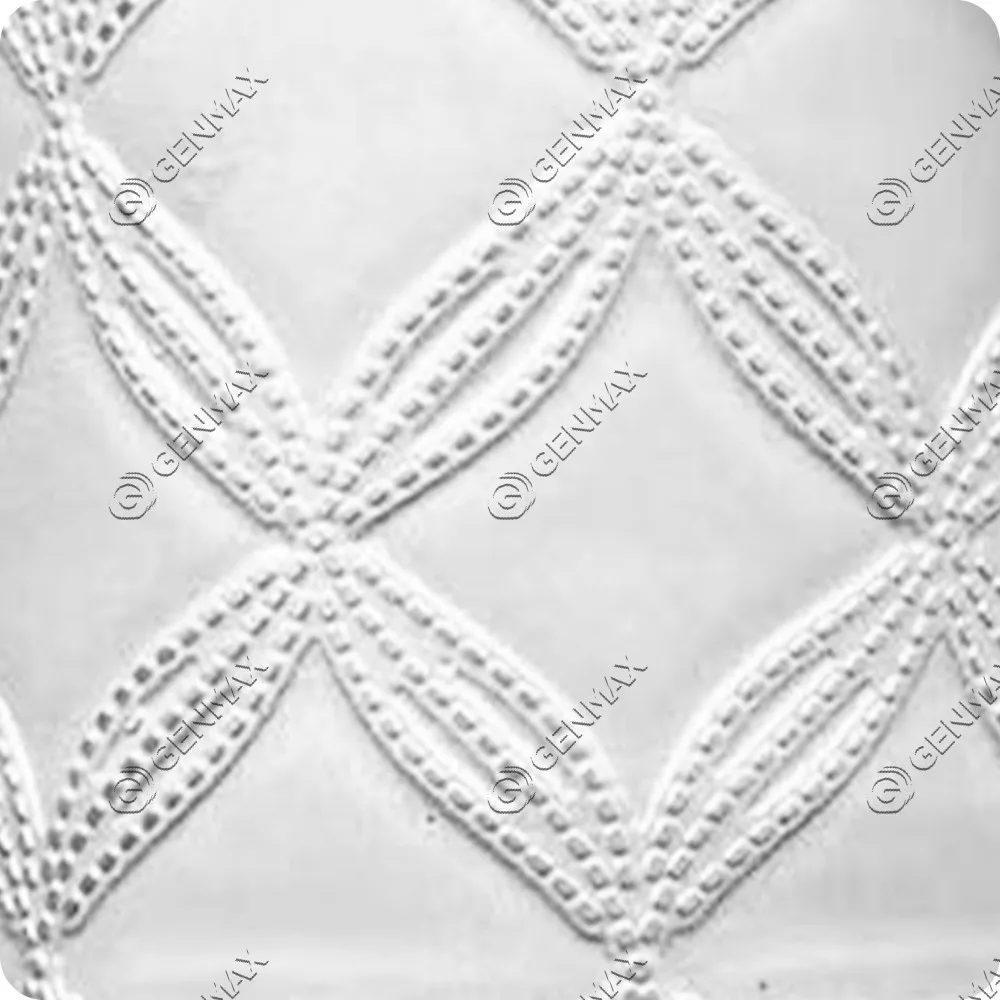

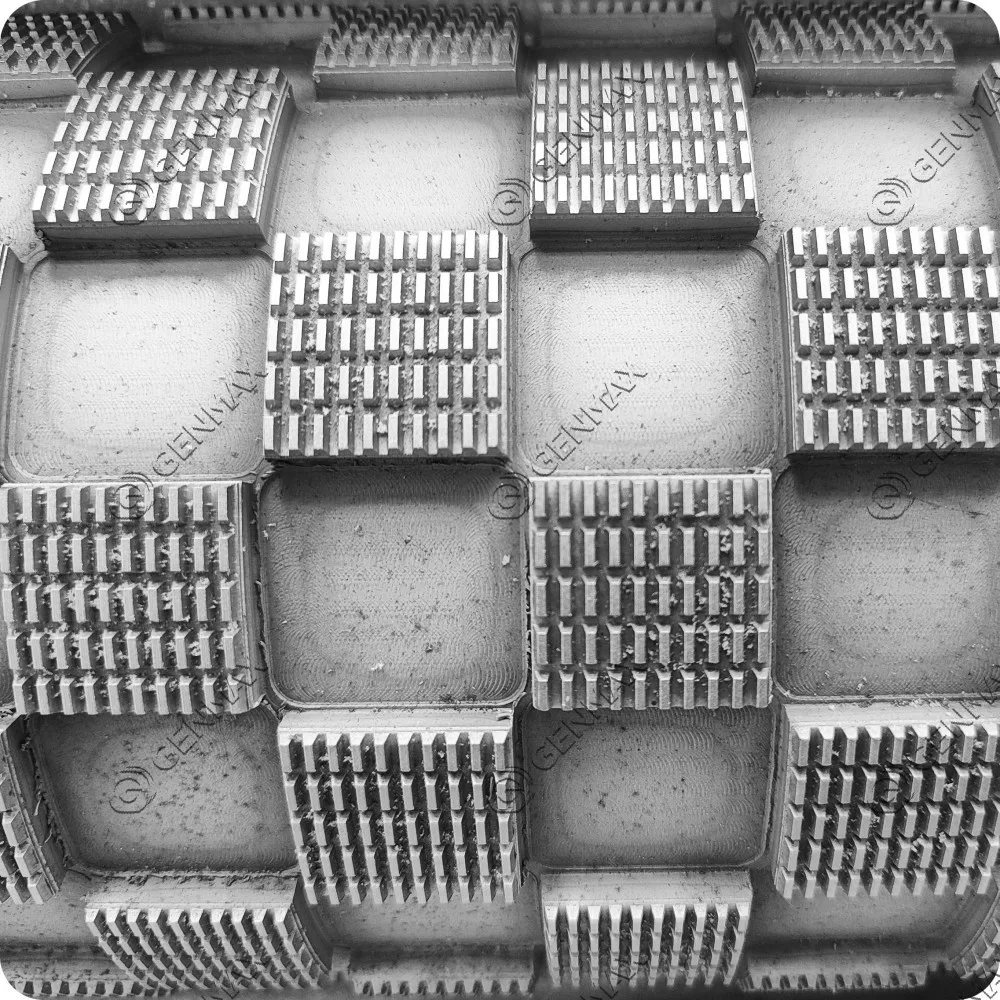

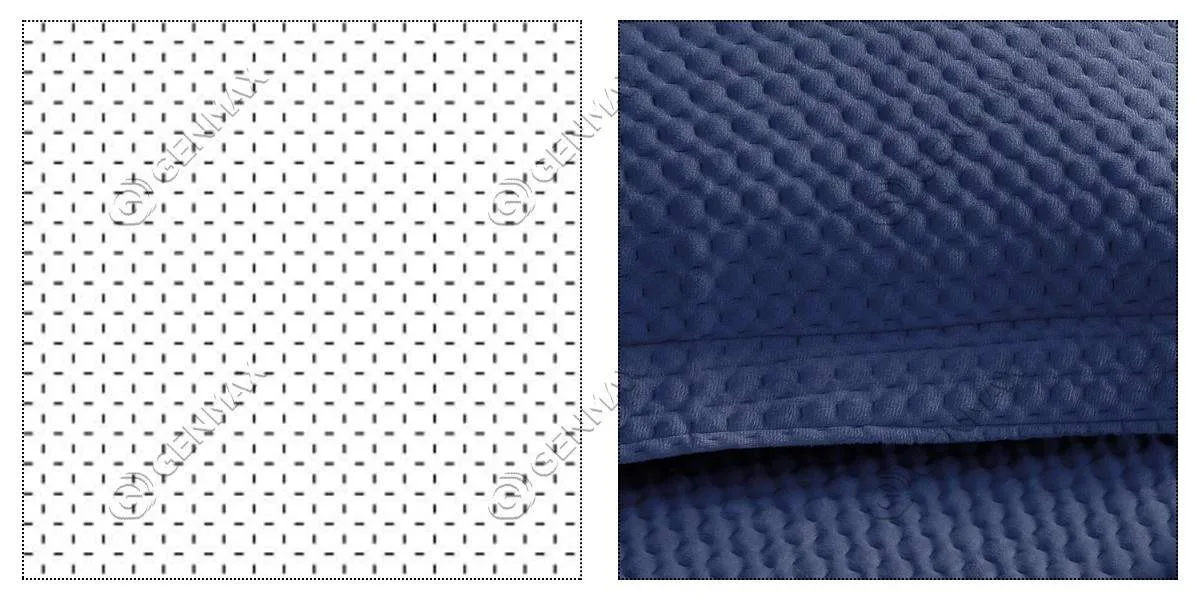

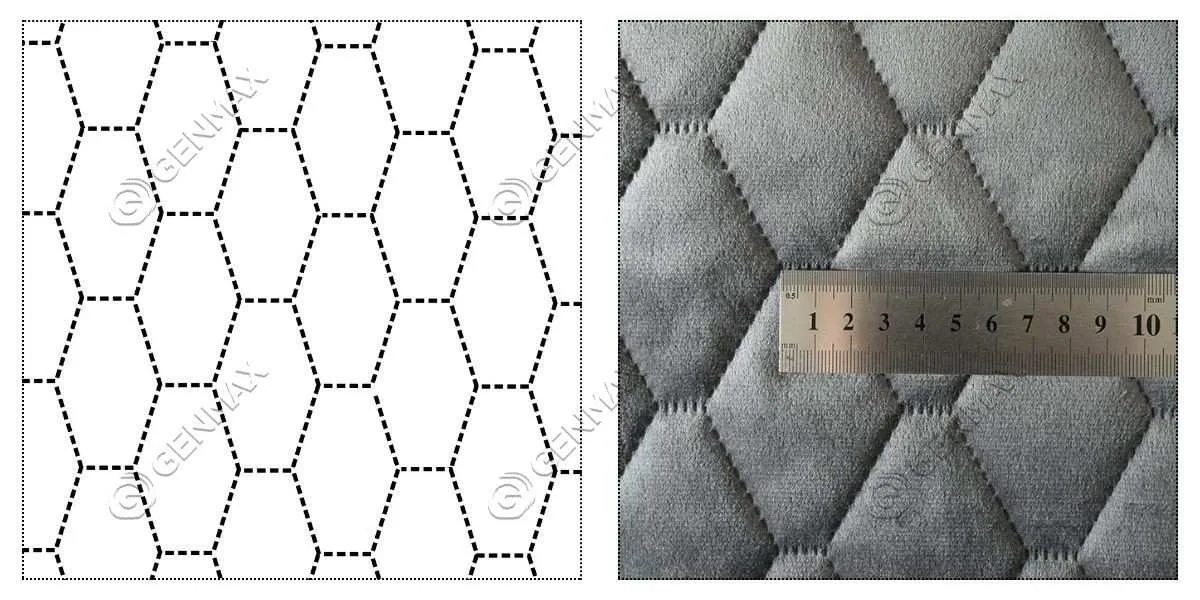

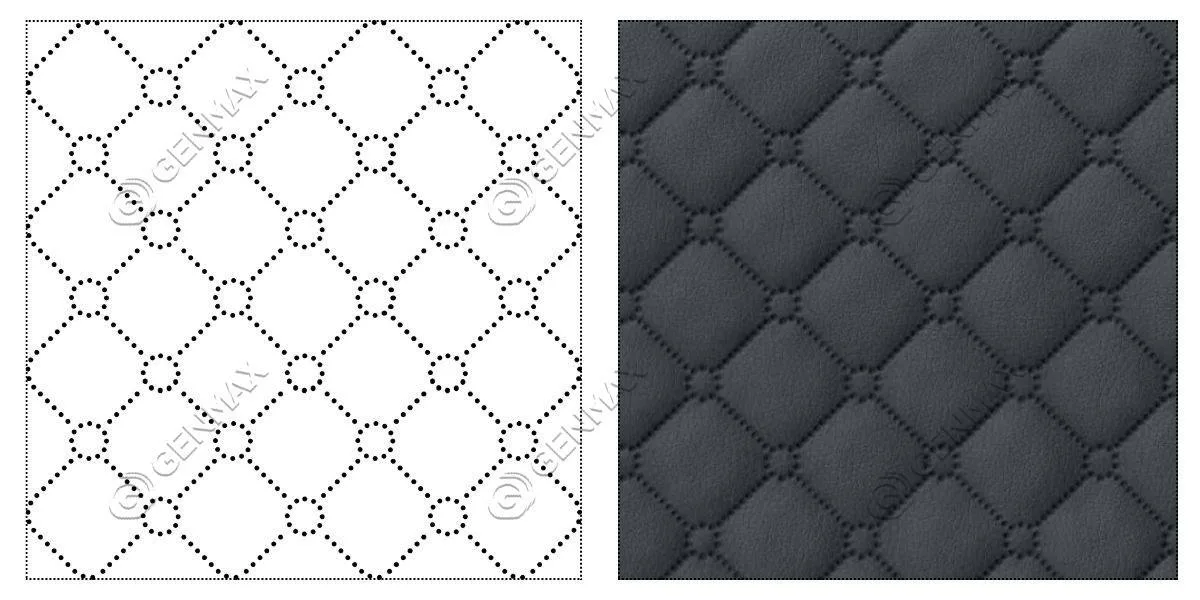

A: Yes! The embossing roller offers customizable designs, allowing you to create unique patterns that match your product requirements and brand identity.
A: The UM4 features a quick-change system that makes switching between different embossing patterns fast and easy, minimizing downtime between production runs.
We provide a standard warranty period of 24 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your Ultrasonic Quilting Machines.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our Ultrasonic Quilting Machines.
A: Our experienced engineers are available for additional training sessions as needed. We also provide 24/7 technical support throughout the machine's lifetime.
