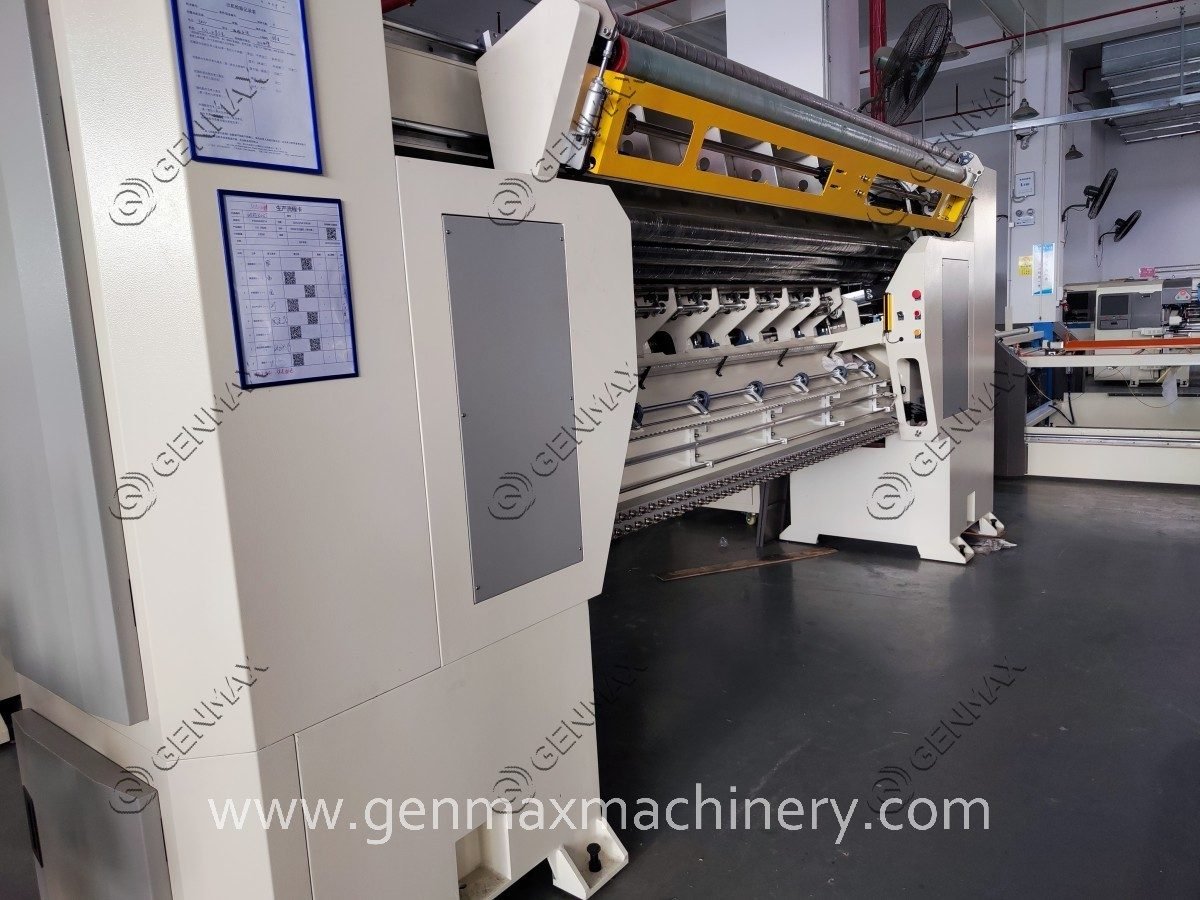

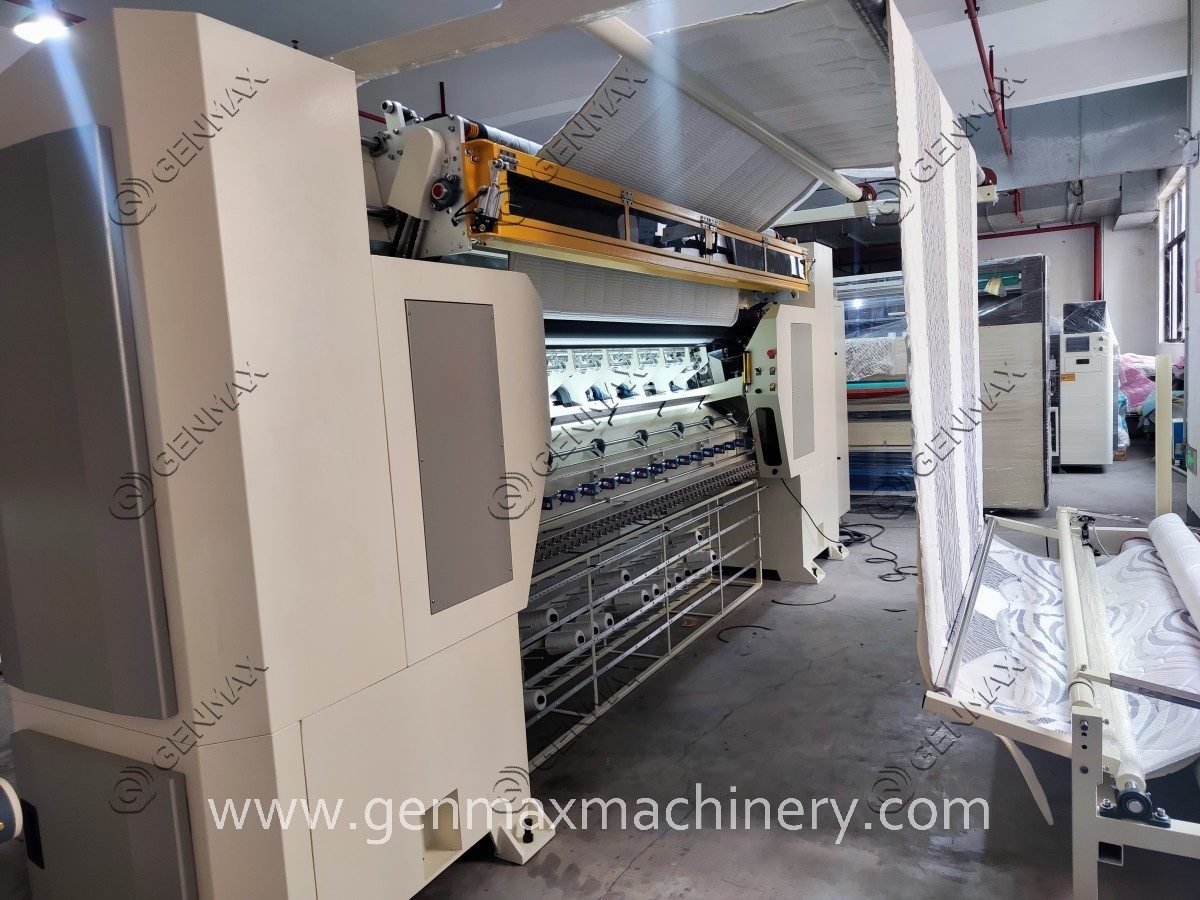

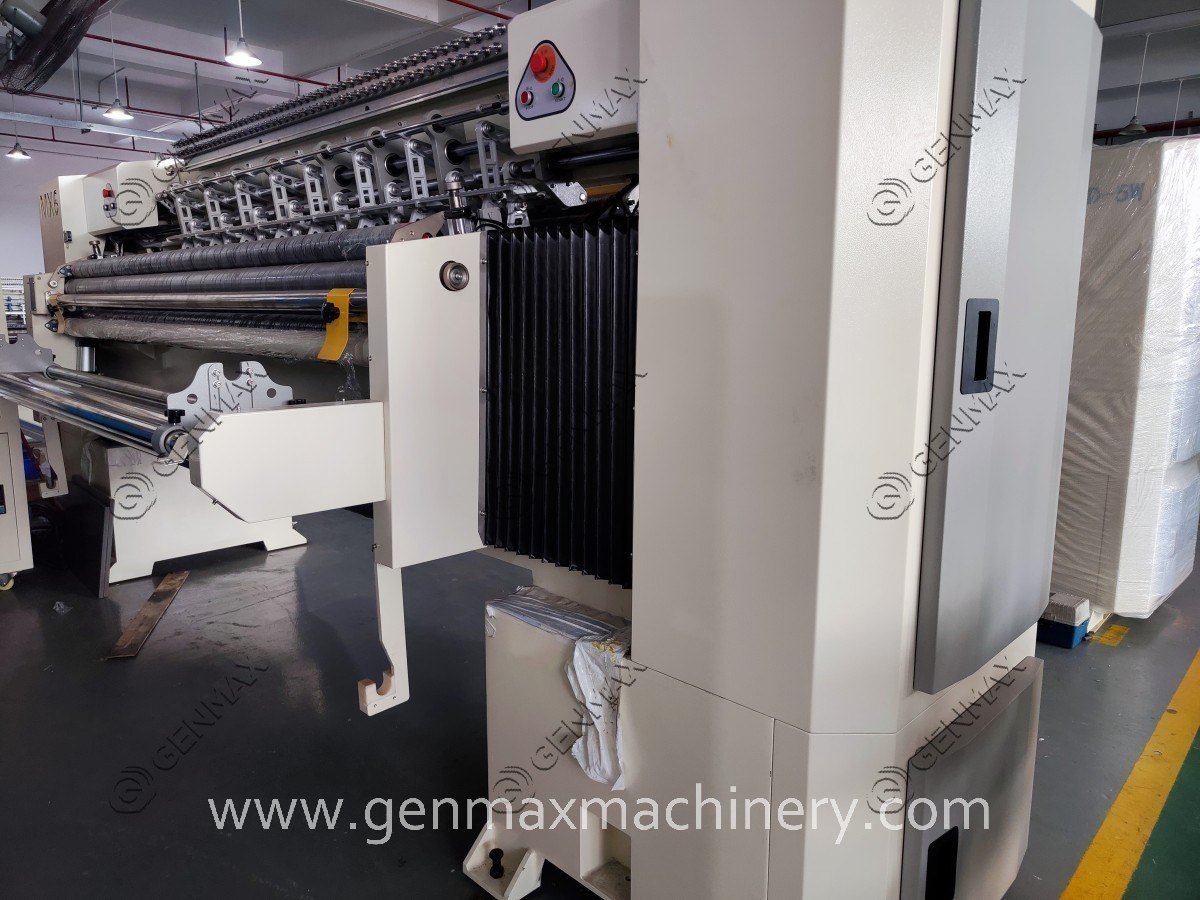

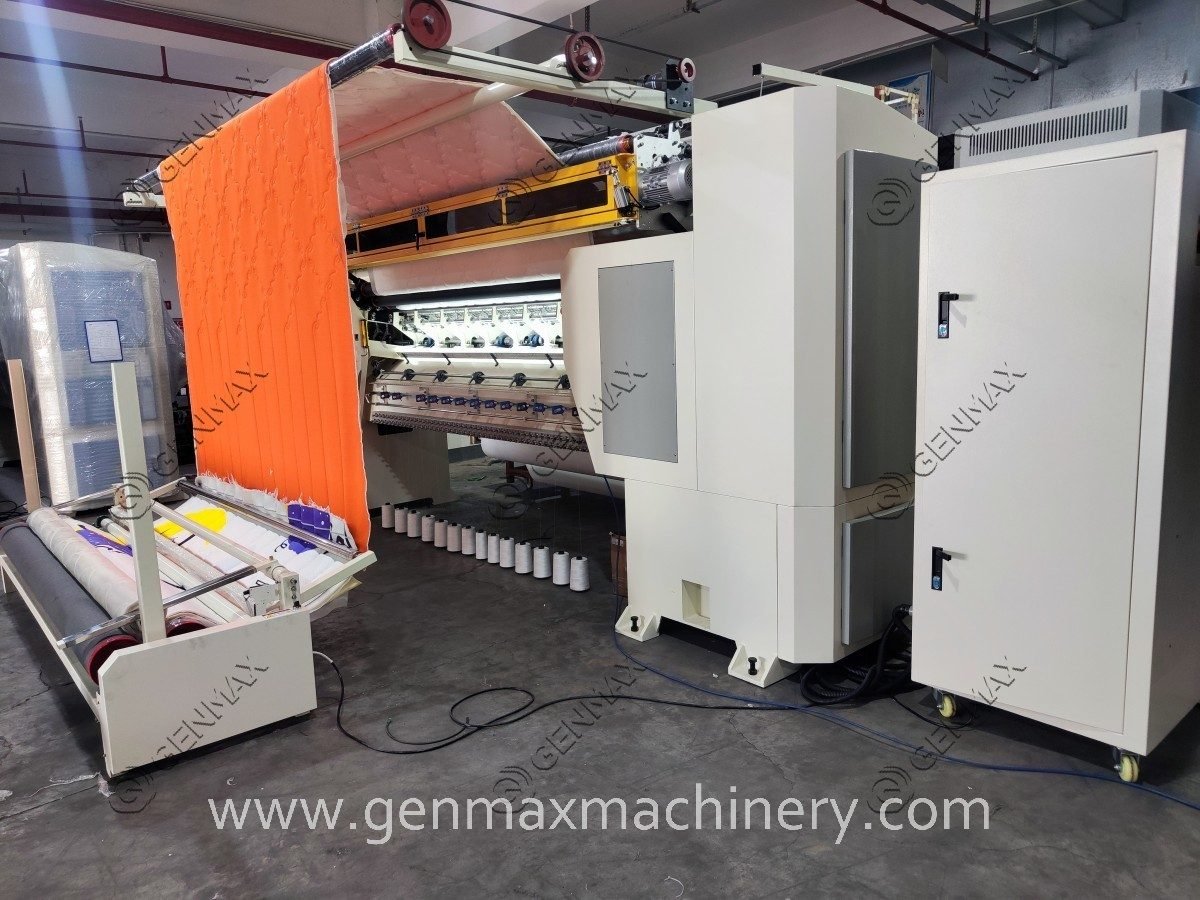

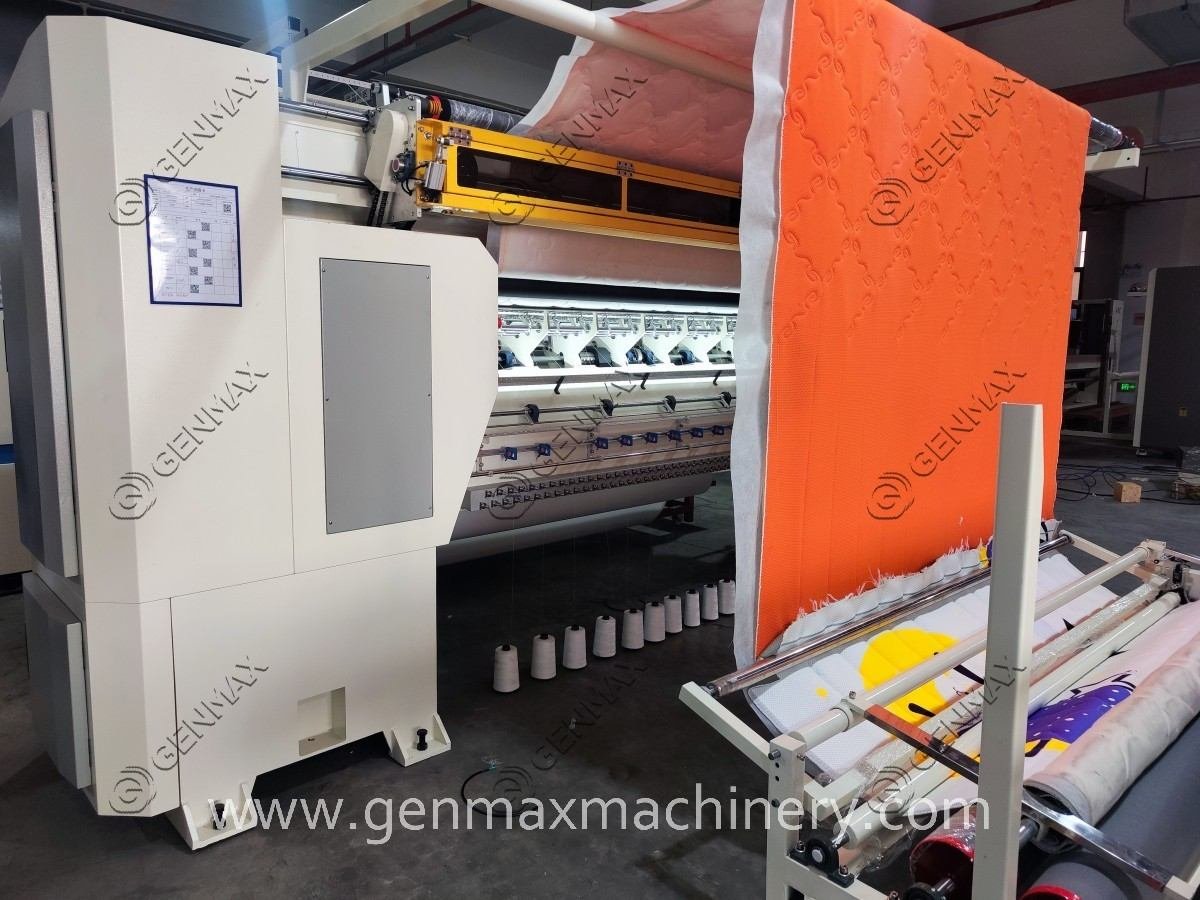

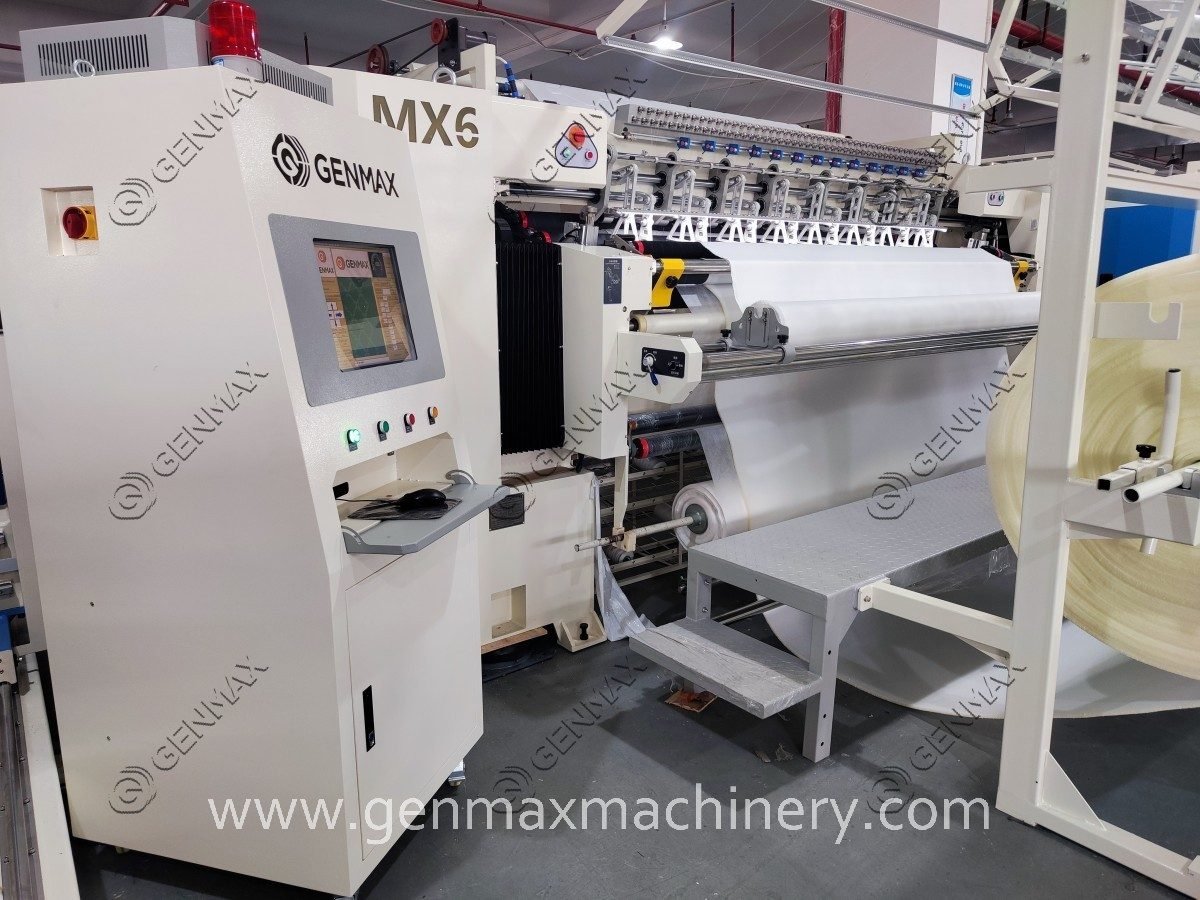

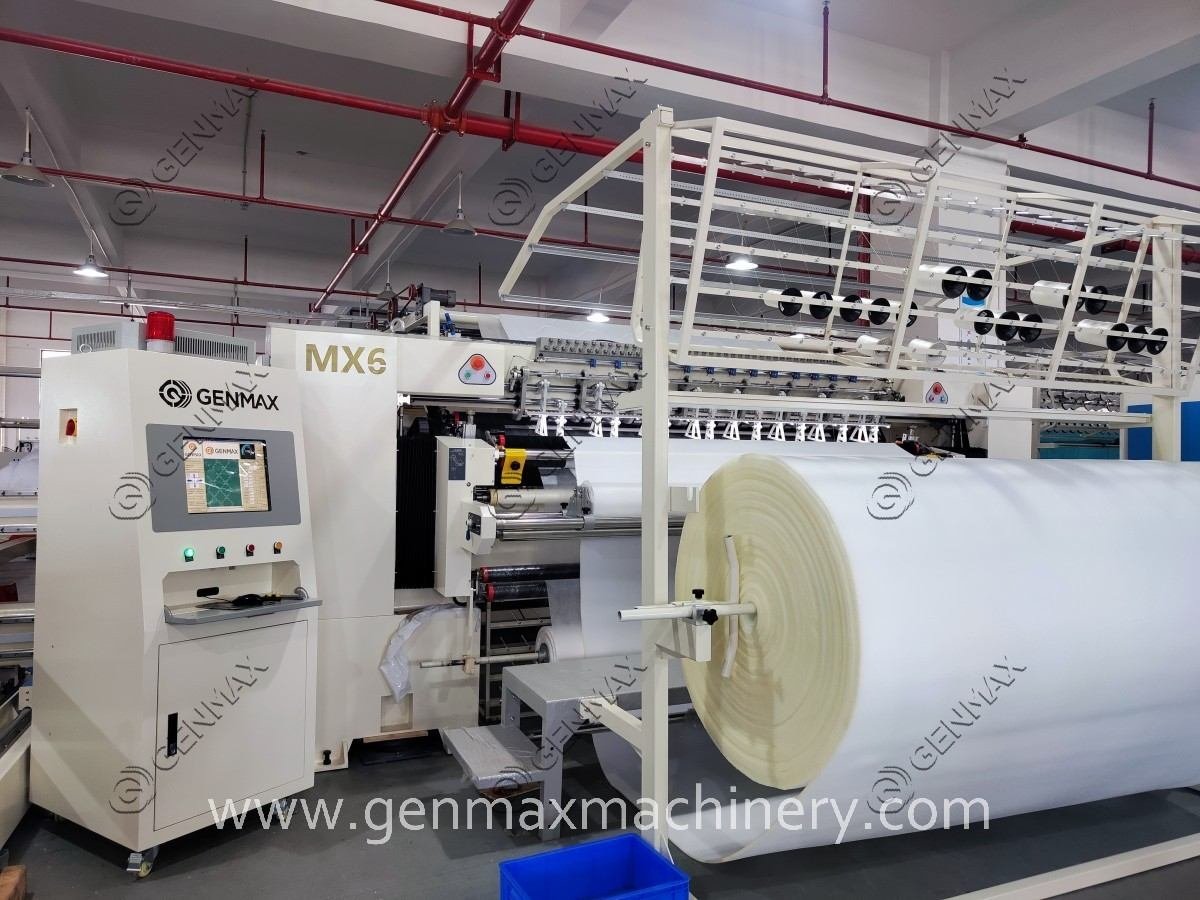

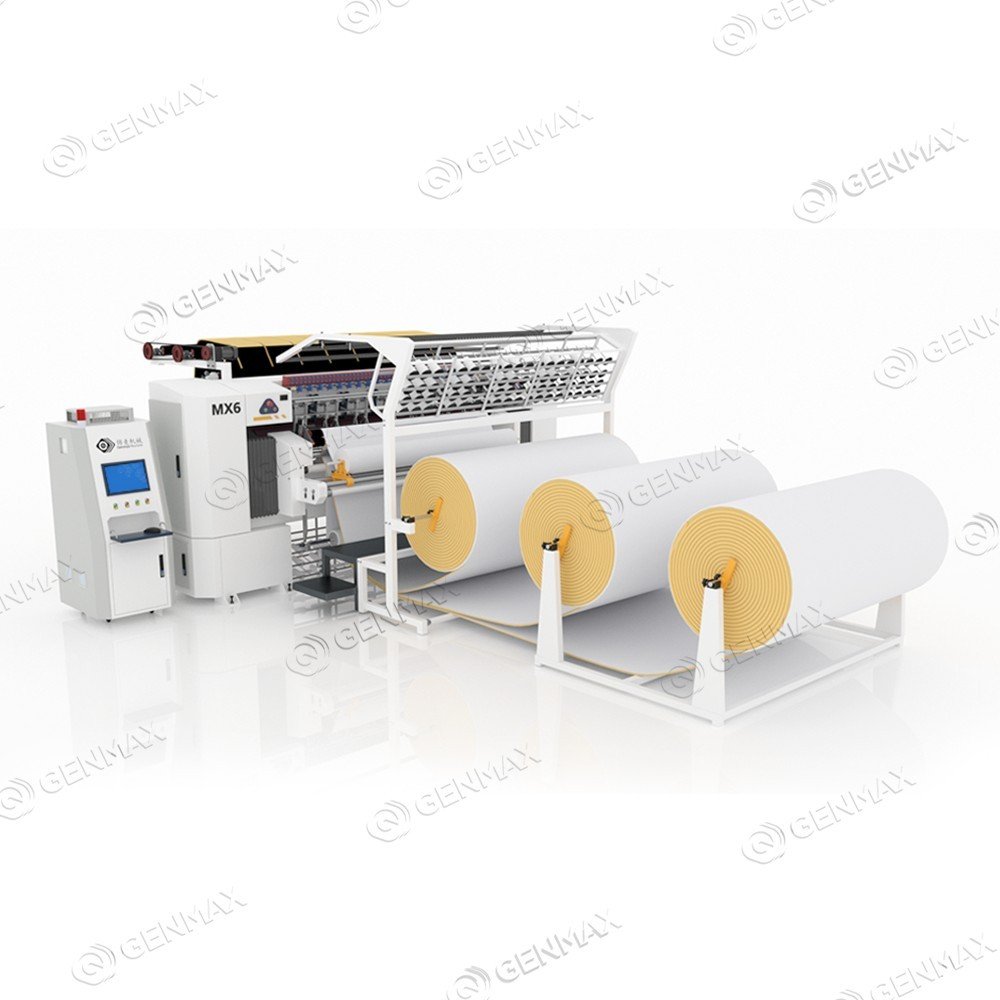

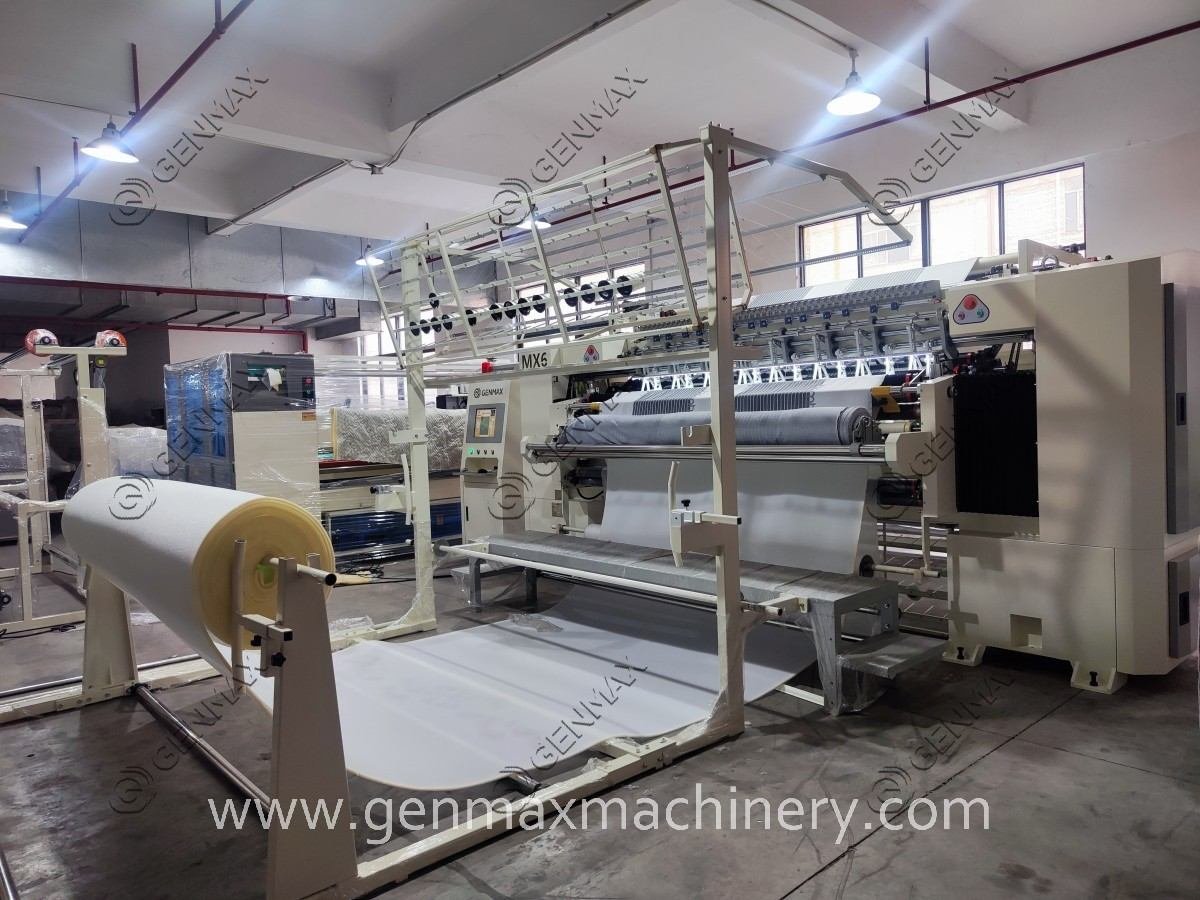

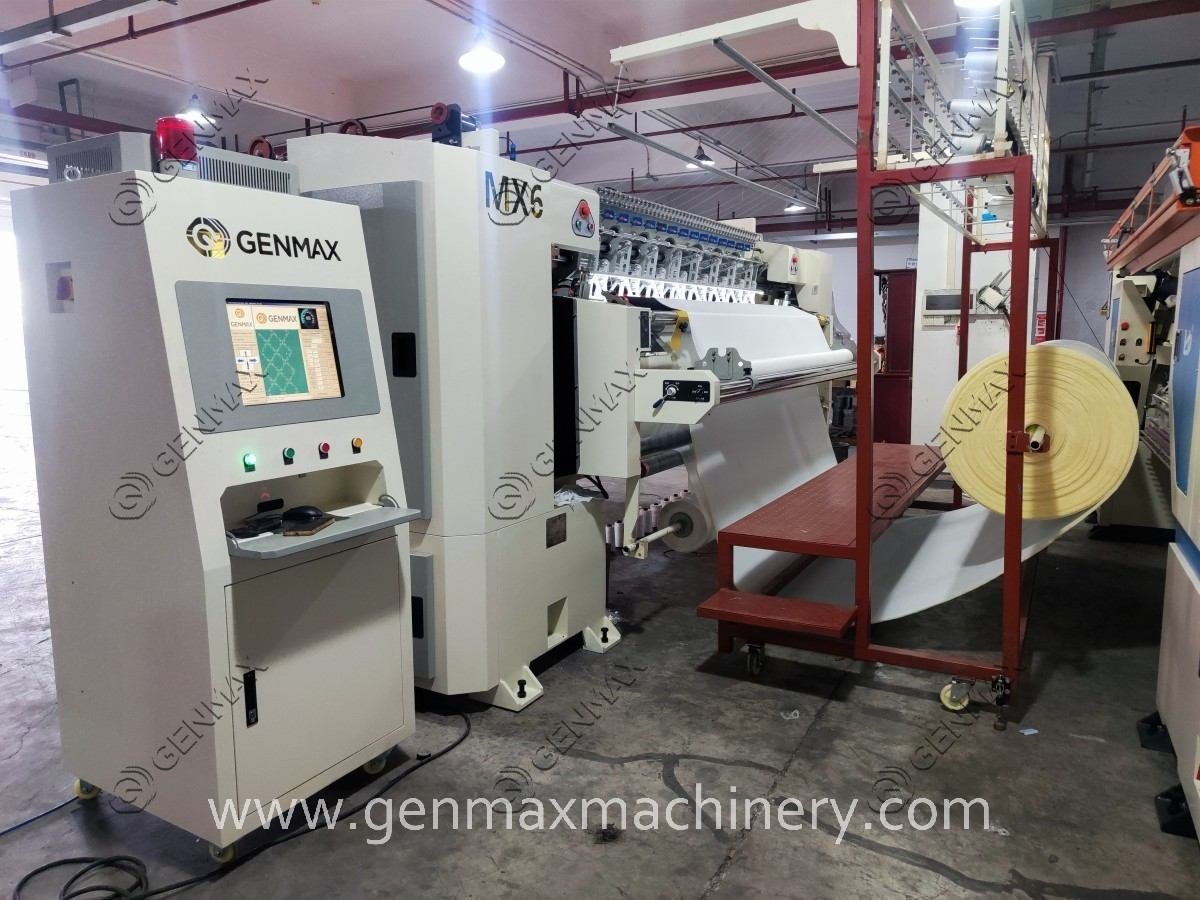

MX-Multi Needle Chain Stitch Quilting Machine features automatic thread breakage detection, simple maintenance, and clear needle alignment display. High-speed processing with low vibration delivers precise quilting for mattresses, household ornaments, and carpet cushions through advanced sewing technology.
Download PDF
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
Share your contact information – our engineers respond 24/7.
MODEL | MX7 | MX6 | M5 |
|---|---|---|---|
Main Shaft Speed | 1400RPM | 600-1300RPM | 600-1200RPM |
Output | 80-330m/h | 60-300m/h | 60-300m/h |
Model Of Needle | 24/180,23/160,22/140,21/130 | 24/180,23/160,22/140,21/130 | 24/180,23/160,22/140,21/130 |
Space Between Needle Rows | (50.8,76.2,127)5",(76.2,76.2,152.4)6" | (50.8,76.2,127)5",(76.2,76.2,152.4)6" | (50.8,76.2,127)5",(76.2,76.2,152.4)6" |
Space Between Needles | 12.7/25.4mm | 12.7/25.4mm | 25.4mm |
Stitch Length | 3-8mm | 3-8mm | 3-8mm |
Stroke | 304.8mm | 304.8mm | 304.8mm |
Quilting Width | 2450mm | 2450mm | 2450mm |
Quilting Thickness | ≤80mm | ≤80mm | ≤80mm |
Dimension | 7400*4900*2520mm | 5400*1650*2360mm | 5930*4880*2330mm |
Power Supply | AC380V,3P,50HZ AC220V,3P,60HZ | AC380V,3P,50HZ AC220V,3P,60HZ | AC380V,3P,50HZ AC220V,3P,60HZ |
Share your contact information – our engineers respond 24/7.
Ready to see similar improvements in your facility? Click for a no-obligation consultation.
Share your contact information – our engineers respond 24/7.

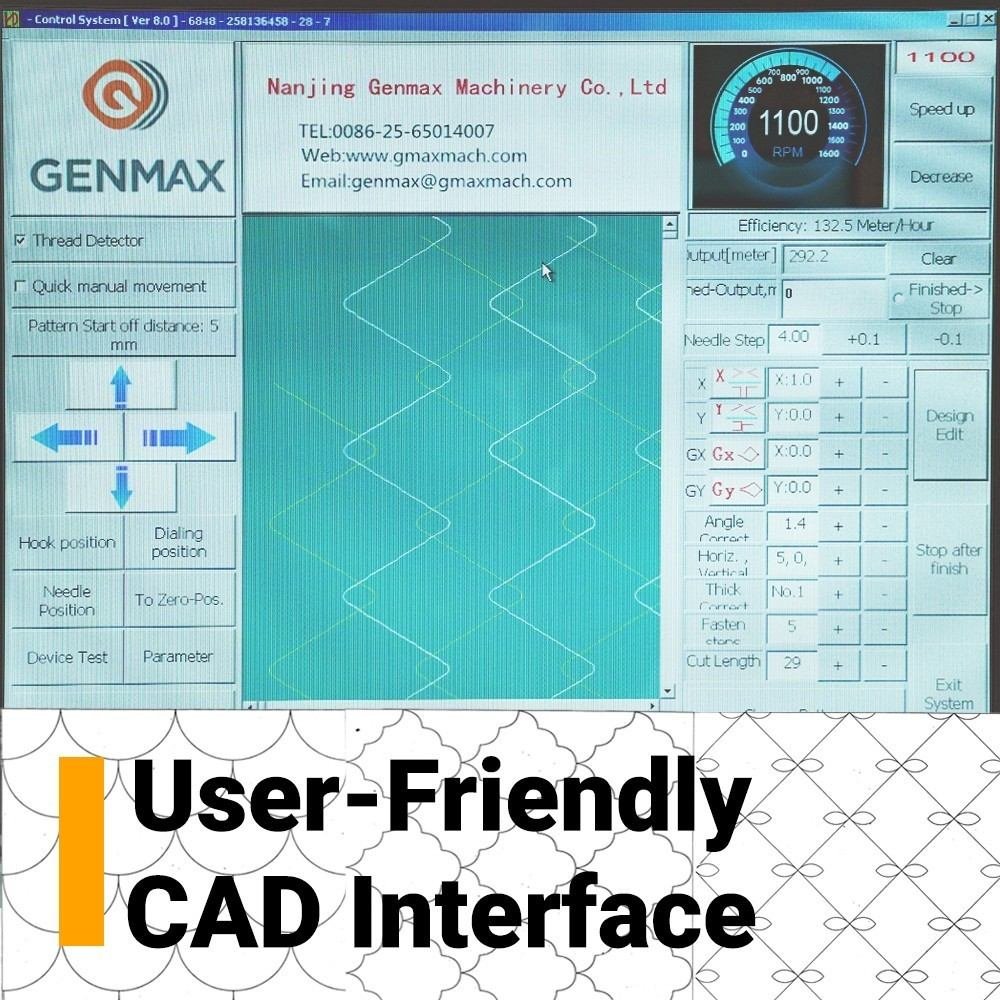

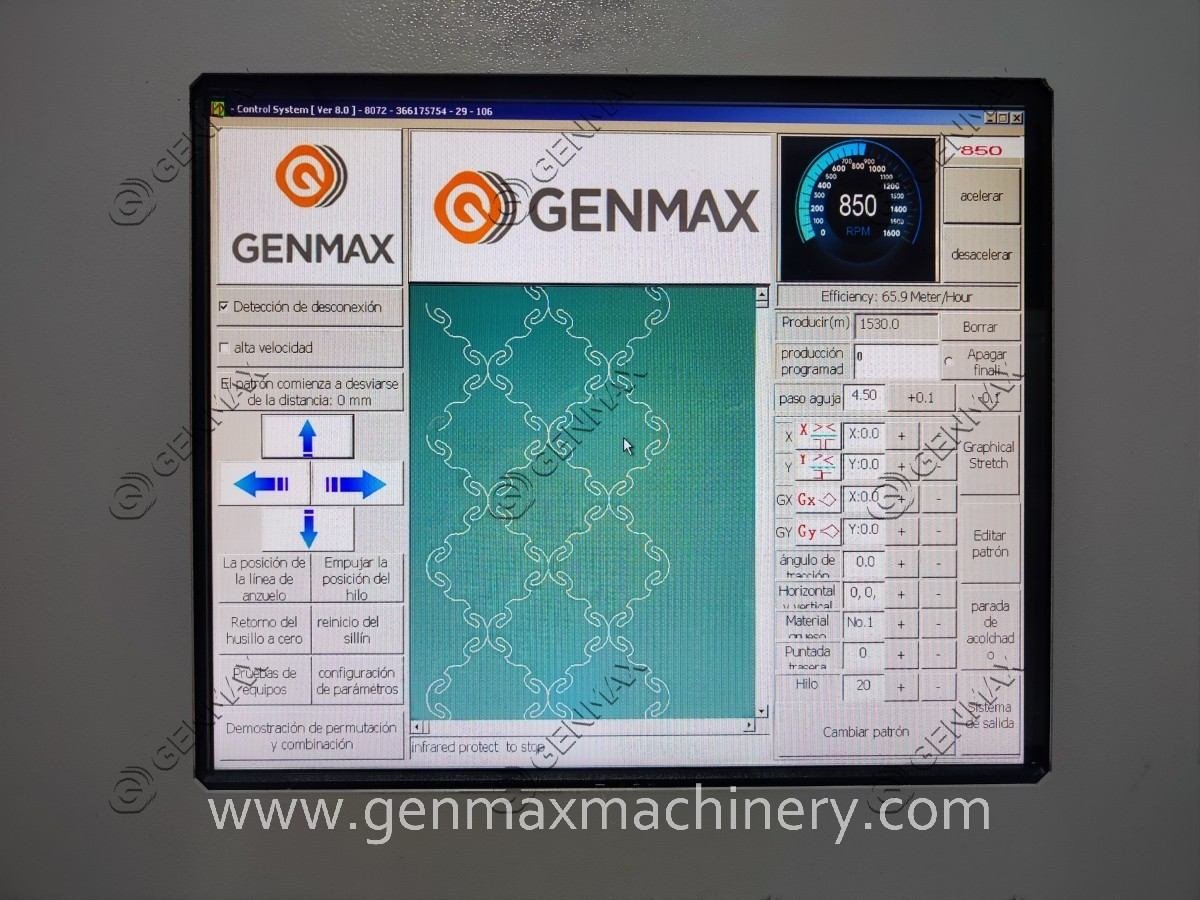

The machine creates Jump, Continuous, and Striped patterns with a versatile pattern system. It offers three pattern functions with easy switching and 360° free quilting capability.

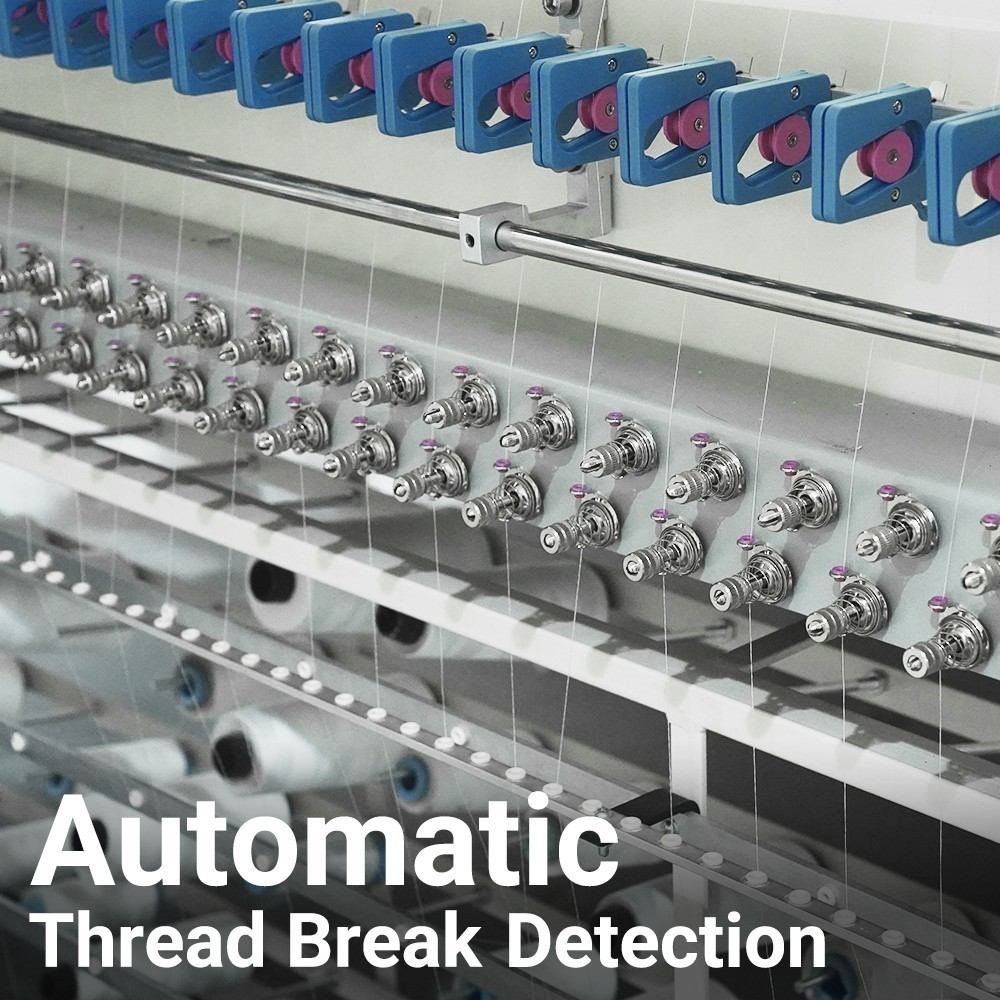

The machine includes comprehensive fault detection functions for both upper and bottom thread breaks, automatic stop motion control with immediate response to thread breakage, and emergency safety devices for operator protection.

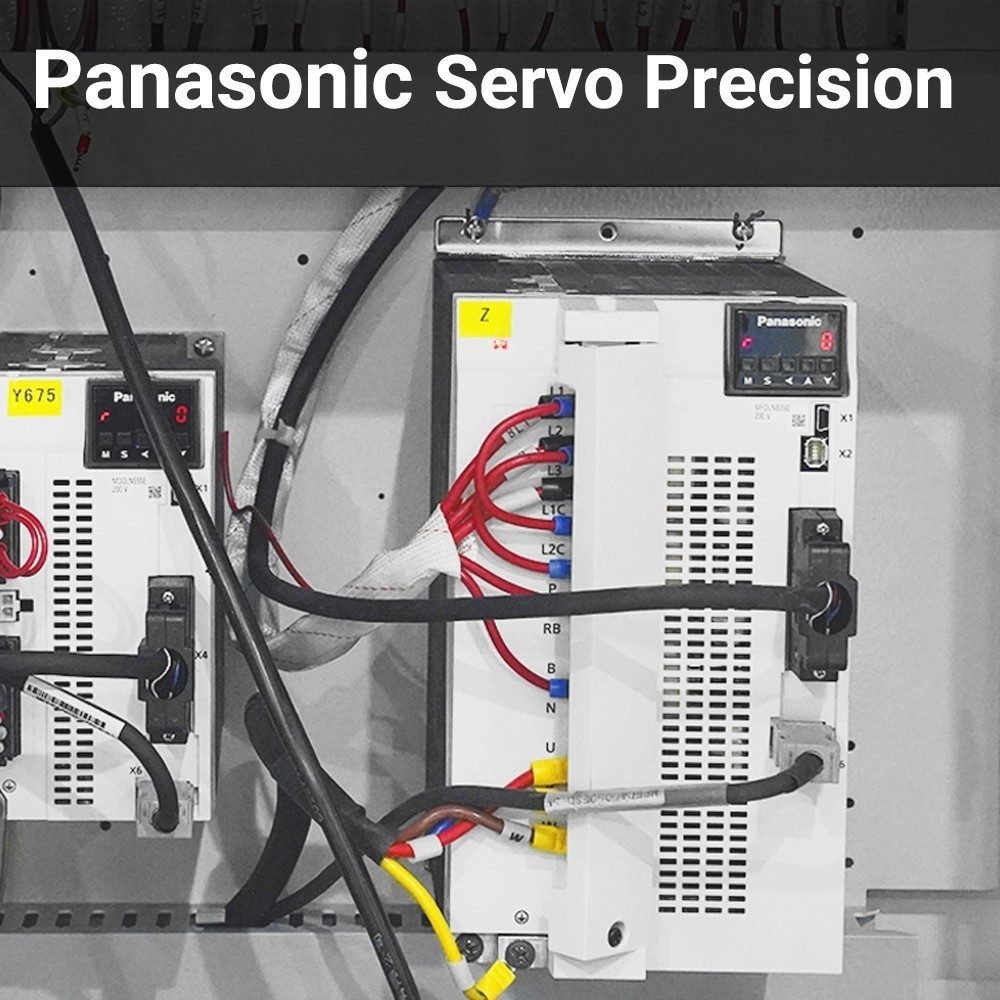

All machine uses servo-driven technology with a 6kW Panasonic servo motor for precise control.

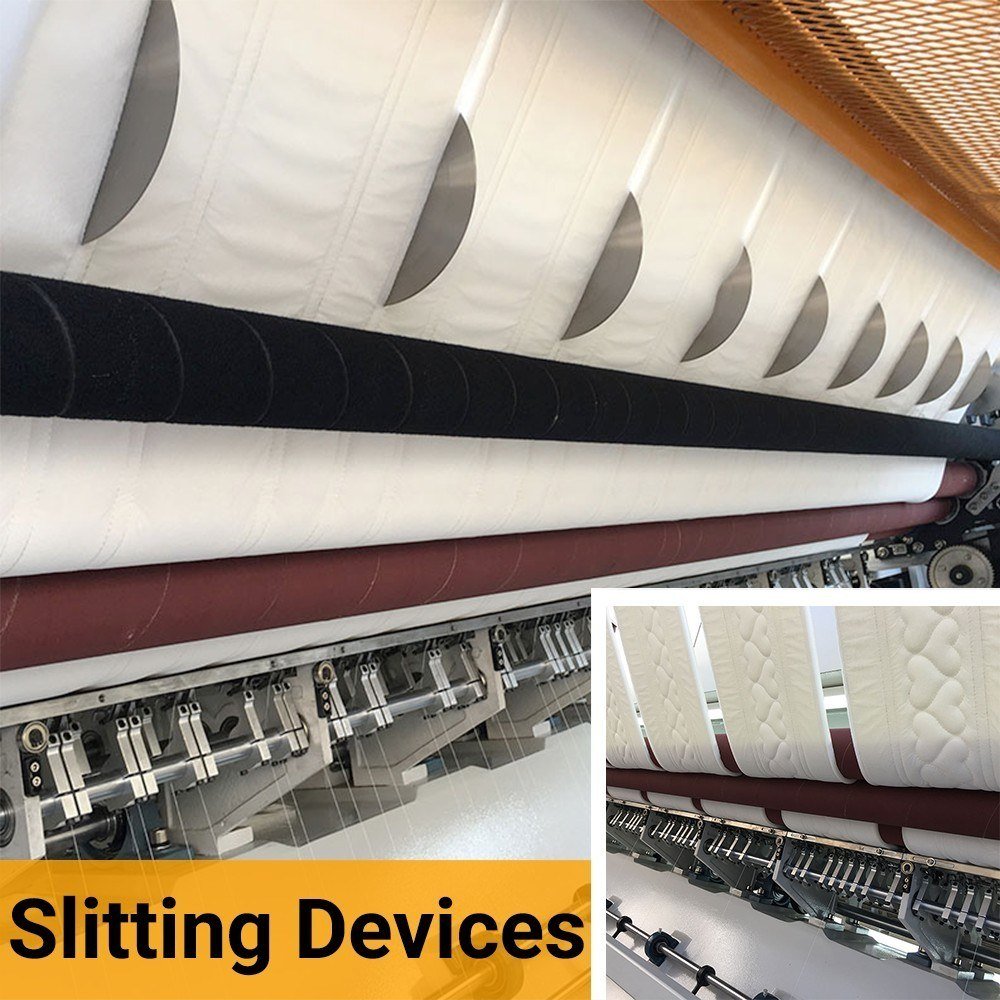

Yes, optional slitting devices with a saddle pendulum mechanism are available for precise cutting.
Stronger, more durable mattresses
Smooth, professional-looking edges
Faster production with automation
Lower labor costs and fewer errors
Flexibility for different fabrics and stitch types
We provide a standard warranty period of 12 months from the date of installation, covering any manufacturing defects and ensuring customer satisfaction.
The lead time typically ranges from 30 to 90 days, depending on the model and order specifications. We will provide an estimated delivery date upon order confirmation.
Yes, we offer extensive after-sales support, including technical assistance, maintenance services, and access to spare parts to ensure the longevity of your Tape Edge Machines.
Absolutely! We can provide references and testimonials from our satisfied customers to demonstrate the reliability and performance of our Tape Edge Machines.
